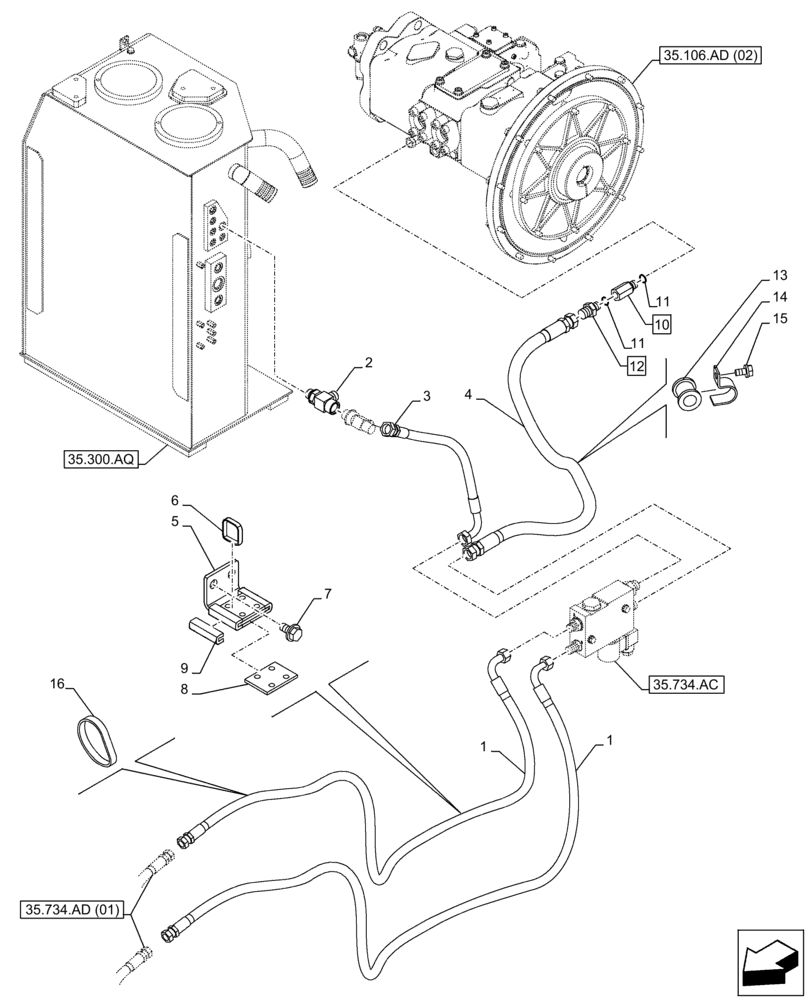

Запчасти Case CX300D LC (35.734.AD[05]) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

KHJ33900

HYDRAULIC HOSE

2шт.

2

KHJ31880

TEE

G 3/8"

1шт.

3

KHJ1168

HYDRAULIC HOSE,9.52 mm ID x 350.00 mm

9mm ID x 350mm

1шт.

4

KBJ25010

HYDRAULIC HOSE

9mm ID x 1020mm

1шт.

5

KBJ25040

BRACKET

1шт.

6

150071A1

MOUNTING CLIP

380mm

4шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

8

KBJ25050

PLATE

2шт.

9

HKR0009

SEAL PROTECTION

60mm

2шт.

10

162525A1

STUD

ASSY, Incl 11 (Qty 1)

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

12

152747A1

ADAPTER

ASSY, Incl 11 (Qty 1)

1шт.

13

HEJ0121

COLLAR

1шт.

14

169267A1

CLAMP

1шт.

15

166351A1

BOLT,Sems, M10 x 20mm

1шт.

16

150496A1

MOUNTING CLIP

250mm

2шт.
