(35.734.AD[02]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE (ARM L=3.66M) - BSN NFS7N1109

Запчасти Case CX300D LC (35.734.AD[02]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE (ARM L=3.66M) - BSN NFS7N1109 (35) - HYDRAULIC SYSTEMS

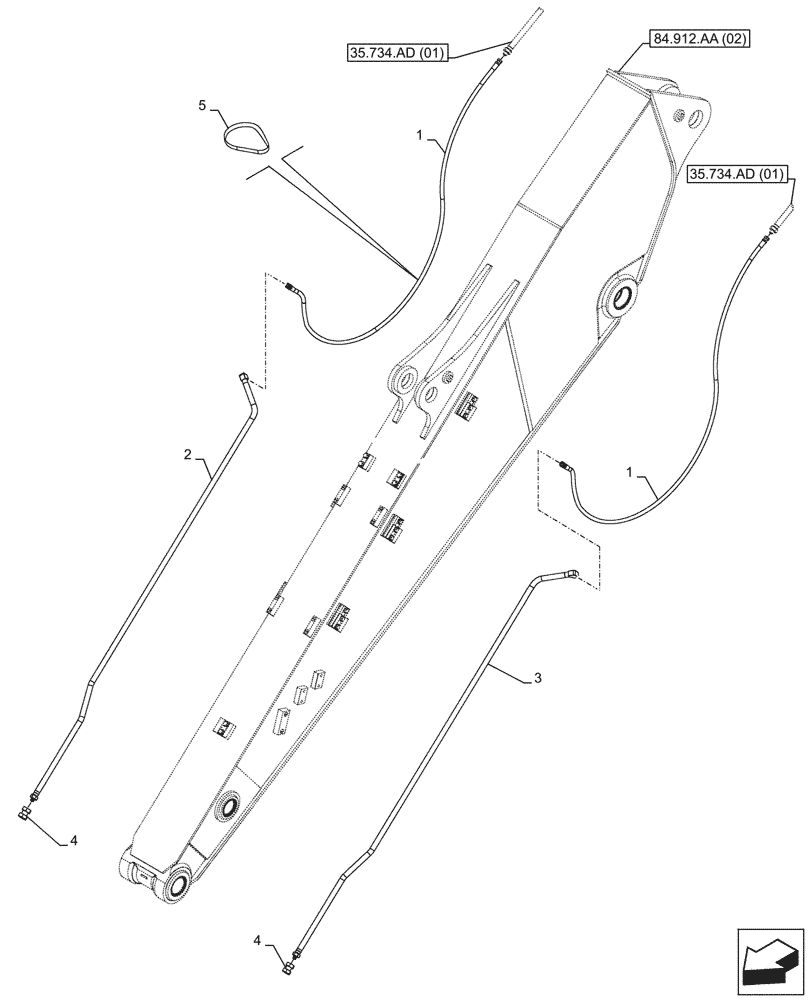

Схема запчастей Case CX300D LC - (35.734.AD[02]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE (ARM L=3.66M) - BSN NFS7N1109 (35) - HYDRAULIC SYSTEMS
35.734.ad (01)
1
4
3
1
2
4
5
84.912.aa(02)
35.734.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHV13490

HOSE

2шт.

2

KBV36820

PIPE

RH

1шт.

3

KBV36810

PIPE

LH

1шт.

4

158842A1

PLUG

G1/4"

2шт.

5

150496A1

MOUNTING CLIP

250mm

6шт.
