(35.360.AM[04]) - VAR - 461863 - BOOM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (35.360.AM[04]) - VAR - 461863 - BOOM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

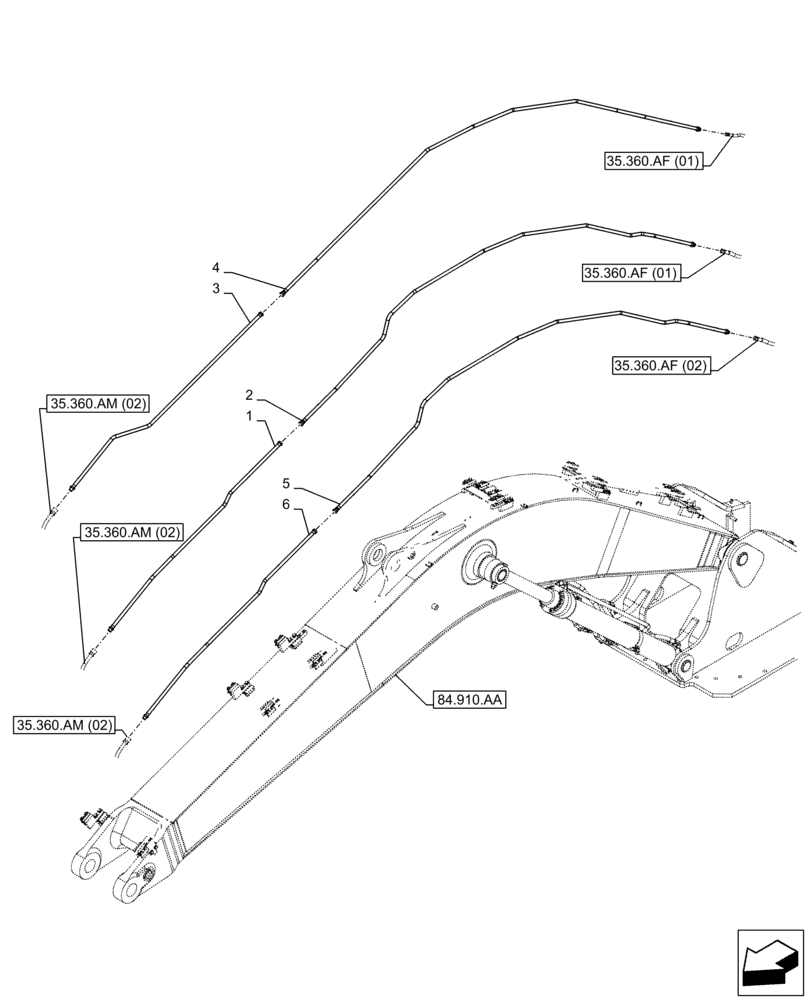

Схема запчастей Case CX300D LC - (35.360.AM[04]) - VAR - 461863 - BOOM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.af (01)
84.910.aa
5
35.360.am (02)
2
3
4
35.360.am (02)
35.360.am (02)
35.360.af (01)
1
35.360.af (02)
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV32430

PIPE

1шт.

2

KBV35750

PIPE

1шт.

3

KBV32440

PIPE

RH

1шт.

4

KBV35760

PIPE

RH

1шт.

5

KBV35770

PIPE

LH

1шт.

6

KBV32450

PIPE

LH

1шт.

Выбрано товаров: 6
