(35.360.AM[03]) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.66M)

Запчасти Case CX300D LC (35.360.AM[03]) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.66M) (35) - HYDRAULIC SYSTEMS

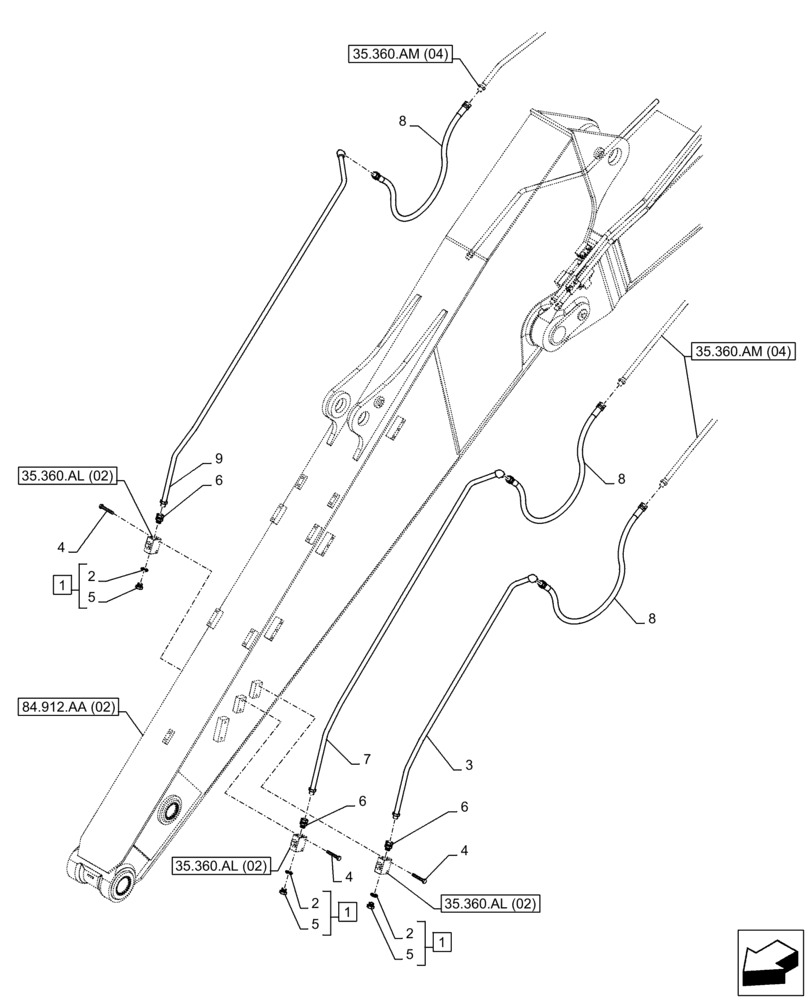

Схема запчастей Case CX300D LC - (35.360.AM[03]) - VAR - 461863 - ARM, LINES, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.66M) (35) - HYDRAULIC SYSTEMS
84.912.aa (02)
3
5
35.360.am (04)
1
4
4
6
5
35.360.al (02)
35.360.al (02)
9
2
35.360.am (04)
2
6
1
8
7
2
6
5
8
8
1
4
35.360.al (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

ASSY, G1/2", Incl 2, 5

3шт.

2

154487A1

O-RING

3шт.

3

KBV21740

HYD TUBE

1шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

M12 x 60mm

6шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

3шт.

6

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

7

KBV21720

HYD TUBE

1шт.

8

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

12mm ID x 1700mm

3шт.

9

KBV21730

HYD TUBE

1шт.

Выбрано товаров: 9
