(35.360.AM[02]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.18M)

Запчасти Case CX300D LC (35.360.AM[02]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.18M) (35) - HYDRAULIC SYSTEMS

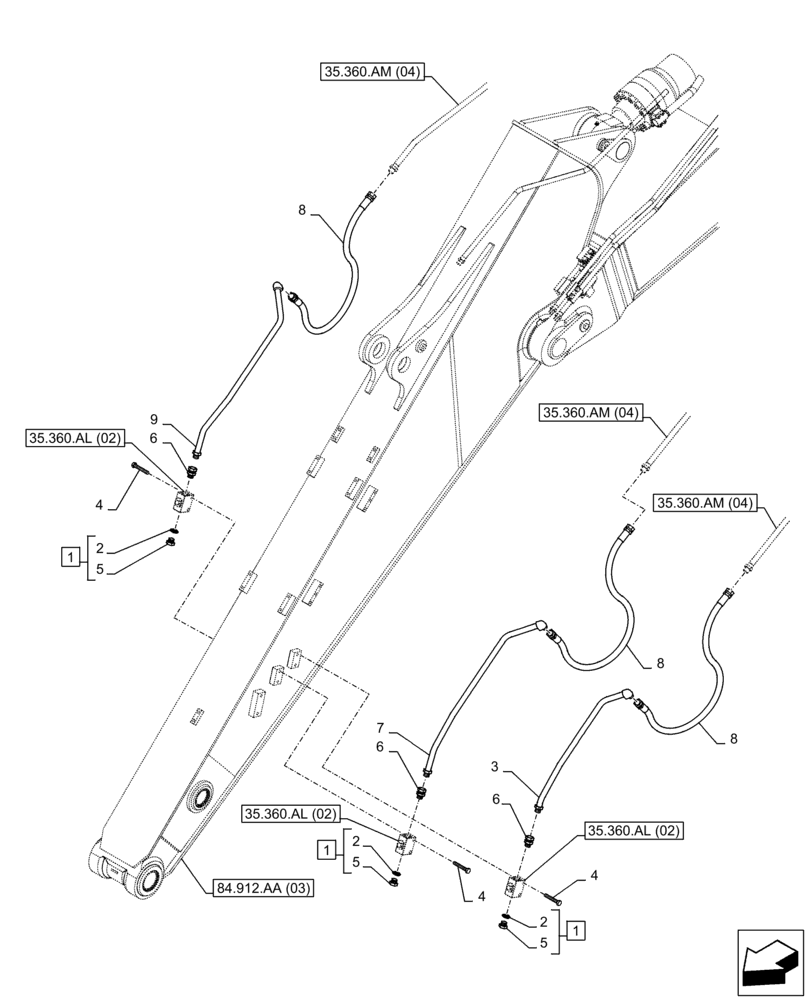

Схема запчастей Case CX300D LC - (35.360.AM[02]) - VAR - 461863 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=3.18M) (35) - HYDRAULIC SYSTEMS
8
1
35.360.al (02)
35.360.am (04)
2
7
5
8
35.360.al (02)
4
35.360.am (04)
35.360.am (04)
5
6
6
8
2
4
84.912.aa (03)
1
3
4
9
6
1
5
35.360.al (02)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159085A1

PLUG

ASSY, G1/2", Incl 2, 5

3шт.

2

154487A1

O-RING

3шт.

3

KBV19440

HYD TUBE

1шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

M12 x 60mm

6шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

3шт.

6

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

7

KBV19420

HYD TUBE

1шт.

8

KBV14860

HYDRAULIC HOSE,12.70 mm ID x 1700.00 mm

12mm ID x 1700mm

3шт.

9

KBV19430

HYD TUBE

1шт.

Выбрано товаров: 9
