Запчасти Case CX300D LC (35.360.AL[02]) - VAR - 461863 - ARM, STOP, VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

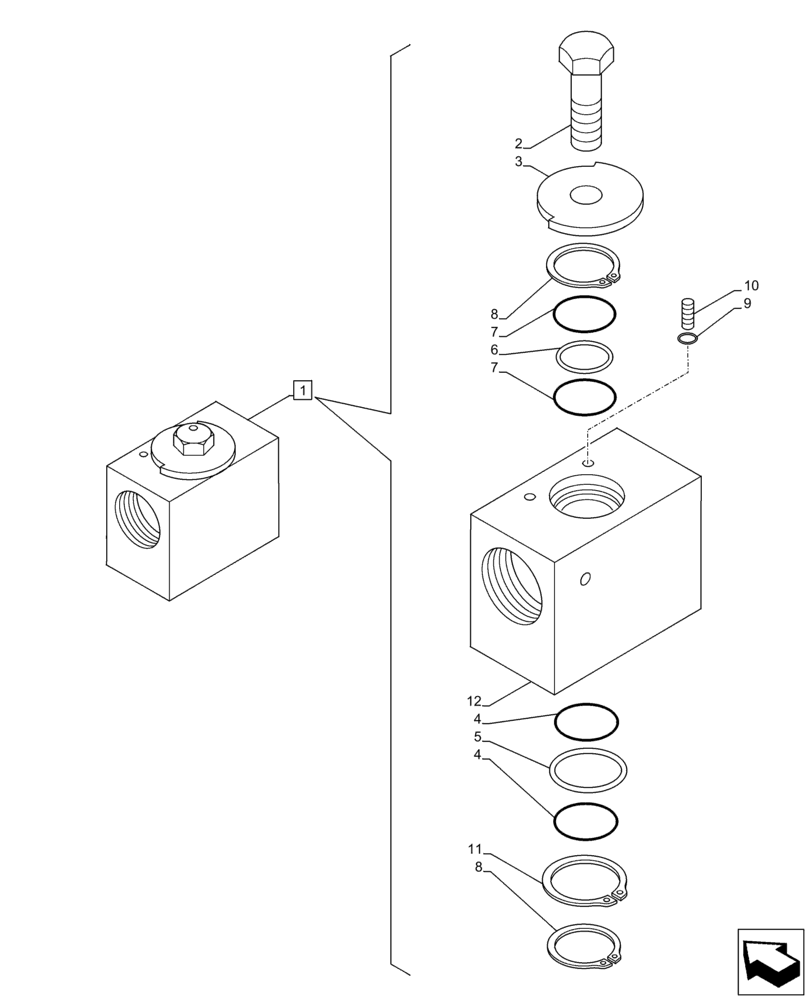

Схема запчастей Case CX300D LC - (35.360.AL[02]) - VAR - 461863 - ARM, STOP, VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
3
4
6
12
9
7
10
11
1
8
4
5
2
8
7

Артикул

Название

Примечание

Количество

1

KHV10440

VALVE

ASSY, Incl 2 - 12

3шт.

2

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Stopper, Incl in 1

1шт.

4

153986A1

BACK-UP RING

1шт.

5

153976A1

BACK-UP RING

1шт.

6

154508A1

O-RING

2шт.

7

154495A1

O-RING

2шт.

8

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

O-ring, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

Выбрано товаров: 12
