(35.360.AK[08]) - VAR - 461865, 461869 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, PLUG

Запчасти Case CX300D LC (35.360.AK[08]) - VAR - 461865, 461869 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, PLUG (35) - HYDRAULIC SYSTEMS

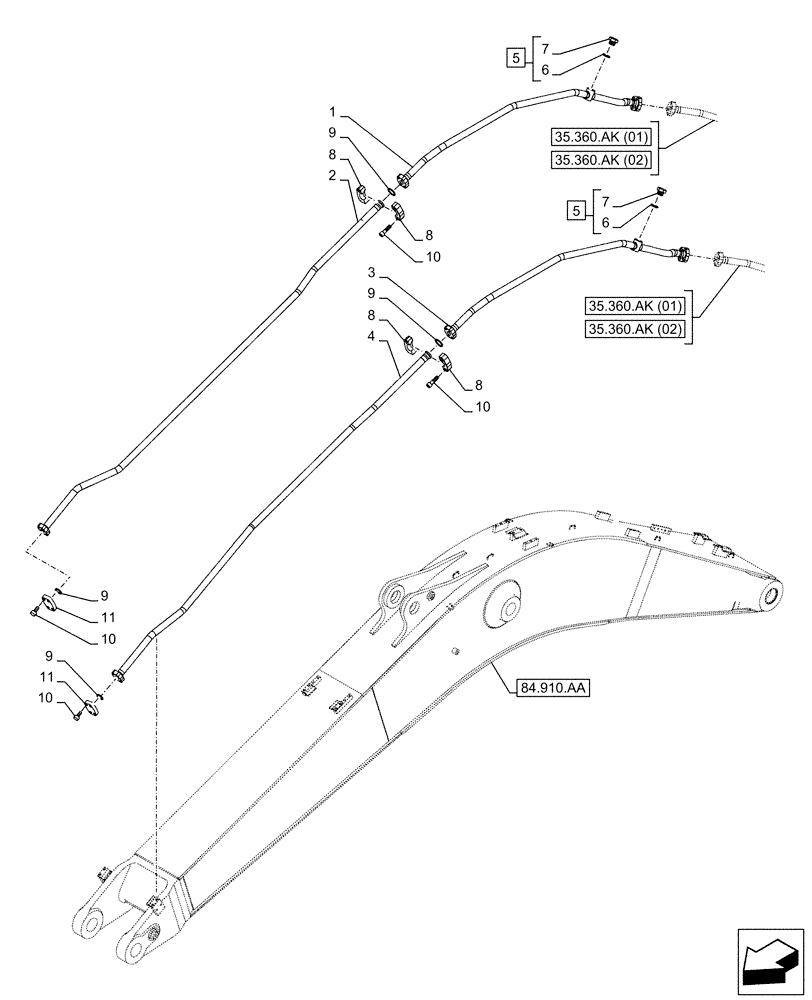

Схема запчастей Case CX300D LC - (35.360.AK[08]) - VAR - 461865, 461869 - BOOM, LINE, HAMMER, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, PLUG (35) - HYDRAULIC SYSTEMS
84.910.aa
10
11
2
7
8
6
9
8
3
1
5
9
9
8
6
11
9
8
5
7
10
10
4
10
35.360.ak (01)
35.360.ak (01)
35.360.ak (02)
35.360.ak (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBV37660

TUBE

RH

1шт.

2

KBV32420

PIPE

RH

1шт.

3

KBV37650

TUBE

LH

1шт.

4

KBV32410

PIPE

LH

1шт.

5

152924A1

PLUG

ASSY, Incl 6, 7

2шт.

6

154503A1

O-RING

2шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

2шт.

8

150124A1

FLANGE

4шт.

9

164450A1

O-RING

4шт.

10

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50mm

16шт.

11

KUP0009

FLANGE

2шт.
