(35.360.AK[06]) - VAR - 461561, 461563, 461865, 461869, 461871 - ARM, LINE, HAMMER CIRCUIT (ARM L=2.65M)

Запчасти Case CX300D LC (35.360.AK[06]) - VAR - 461561, 461563, 461865, 461869, 461871 - ARM, LINE, HAMMER CIRCUIT (ARM L=2.65M) (35) - HYDRAULIC SYSTEMS

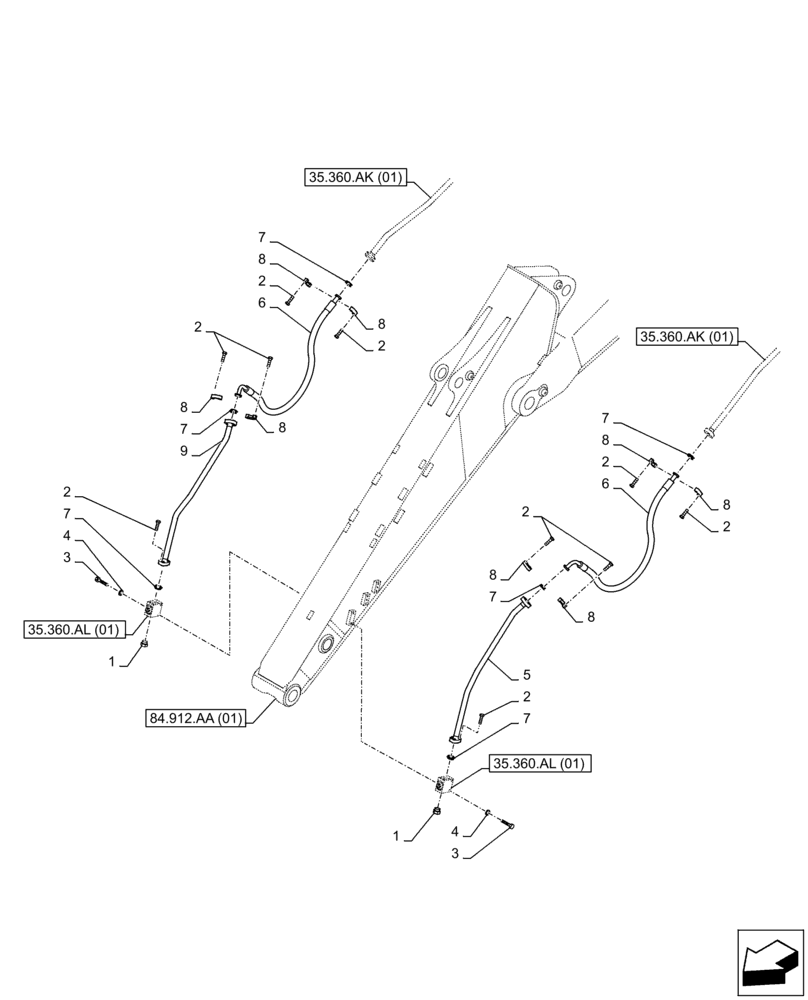

Схема запчастей Case CX300D LC - (35.360.AK[06]) - VAR - 461561, 461563, 461865, 461869, 461871 - ARM, LINE, HAMMER CIRCUIT (ARM L=2.65M) (35) - HYDRAULIC SYSTEMS
2
6
8
6
8
7
1
7
84.912.aa (01)
2
7
9
2
8
7
1
35.360.ak (01)
3
8
5
2
8
4
7
3
35.360.al (01)
8
35.360.ak (01)
2
2
8
4
7
35.360.al (01)
2
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162335A1

PLUG

2шт.

2

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50mm

24шт.

3

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

M12 x 90mm

4шт.

4

150811A1

WASHER

4шт.

5

KBV19981

HYD TUBE

1шт.

6

KBV16090

HYDRAULIC HOSE,31.80 mm ID x 2150.00 mm

2400mm

2шт.

7

164450A1

O-RING

6шт.

8

150124A1

FLANGE

1 1/4"

12шт.

9

KBV19991

HYD TUBE

1шт.
