(35.360.AK[02]) - VAR - 461869 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (35.360.AK[02]) - VAR - 461869 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

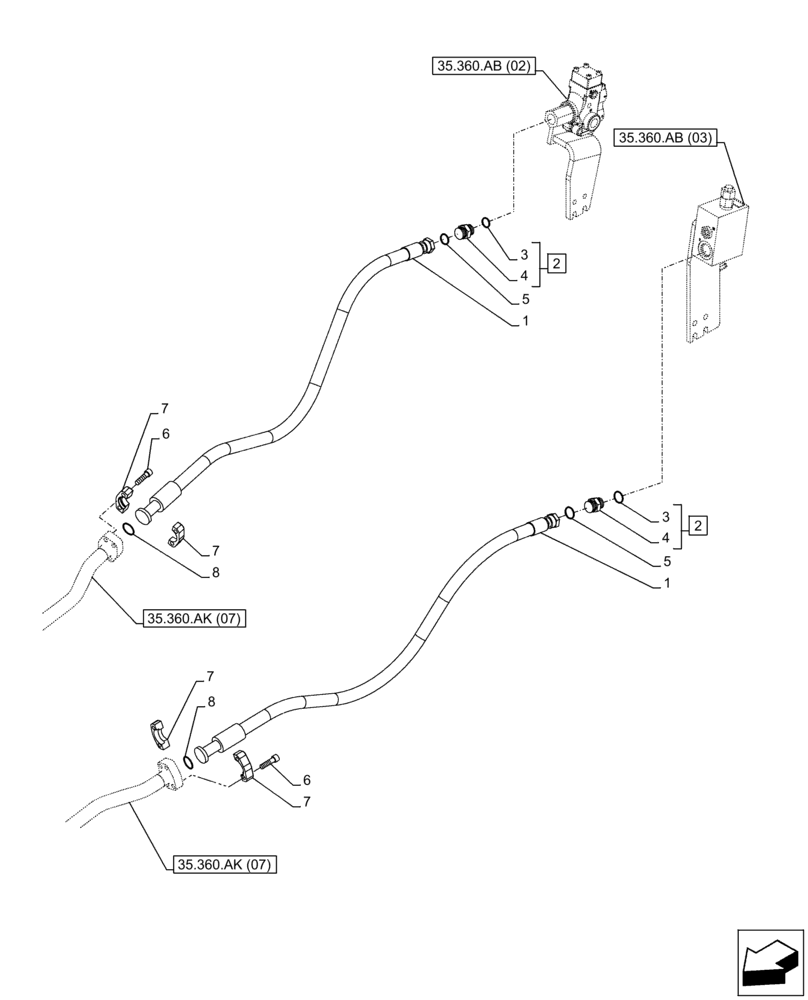

Схема запчастей Case CX300D LC - (35.360.AK[02]) - VAR - 461869 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
7
7
35.360.ak (07)
7
8
6
1
35.360.ab (03)
2
3
8
35.360.ak (07)
1
4
5
3
4
7
2
35.360.ab (02)
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ11790

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

1шт.

2

KHJ1349

ADAPTER

ASSY, Incl 3, 4

2шт.

3

154523A1

O-RING

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

2шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

6

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

8шт.

7

150124A1

FLANGE

4шт.

8

164450A1

O-RING

2шт.

Выбрано товаров: 8
