(35.360.AJ[07]) - VAR - 461871 - SHEARS, SOLENOID VALVE, LINE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (35.360.AJ[07]) - VAR - 461871 - SHEARS, SOLENOID VALVE, LINE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

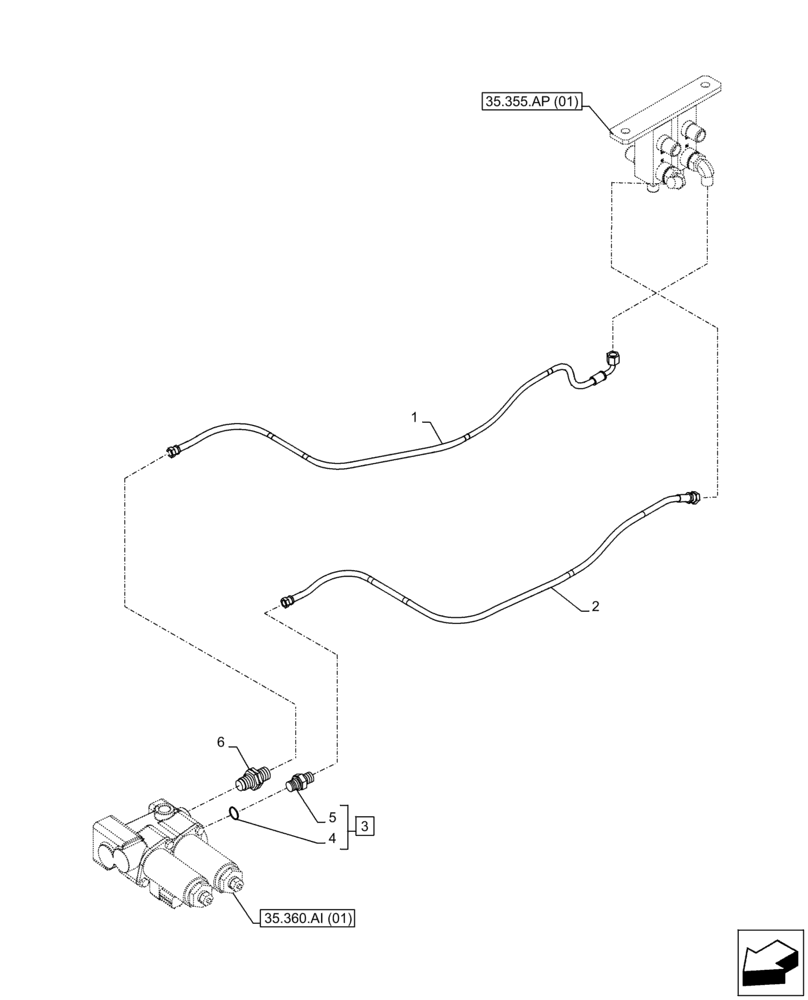

Схема запчастей Case CX300D LC - (35.360.AJ[07]) - VAR - 461871 - SHEARS, SOLENOID VALVE, LINE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
2
5
4
3
1
35.360.ai (01)
35.355.ap(01)
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2092

HOSE

1шт.

2

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 4, 5

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

161841A1

HYD CONNECTOR

1шт.

Выбрано товаров: 6
