(35.360.AJ[06]) - VAR - 461871 - SHEARS, SOLENOID VALVE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (35.360.AJ[06]) - VAR - 461871 - SHEARS, SOLENOID VALVE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

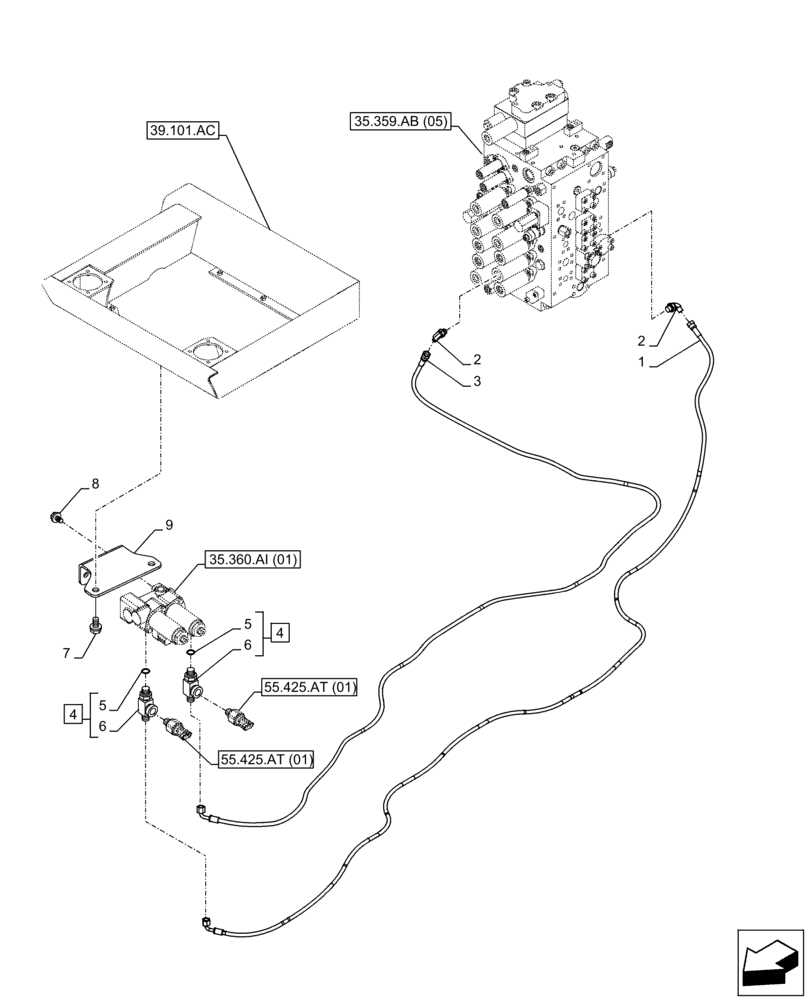

Схема запчастей Case CX300D LC - (35.360.AJ[06]) - VAR - 461871 - SHEARS, SOLENOID VALVE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
7
8
5
9
4
35.360.ai (01)
35.359.ab (05)
4
3
55.425.at (01)
5
55.425.at (01)
2
6
2
1
39.101.ac
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ17550

HOSE

1шт.

2

KHJ28690

ELBOW

2шт.

3

KHJ15160

HYDRAULIC HOSE

1шт.

4

167666A1

FITTING

ASSY, Incl 5, 6

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

7

166351A1

BOLT,Sems, M10 x 20mm

2шт.

8

166345A1

BOLT

2шт.

9

KHJ28770

BRACKET

1шт.

Выбрано товаров: 9
