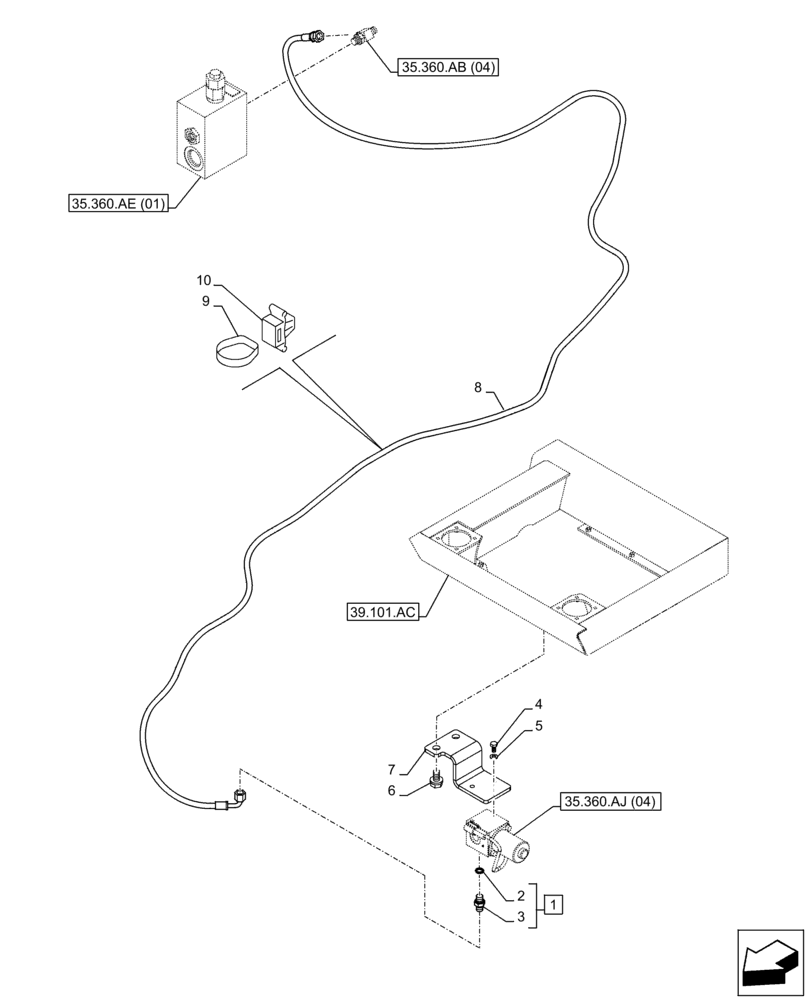

Запчасти Case CX300D LC (35.360.AJ[05]) - VAR - 461869 - HAMMER CIRCUIT, SHEARS, SOLENOID VALVE, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 2, 3

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

4

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

, Serial Range: -C0298

2шт.

4

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

, Start Serial: D0298

2шт.

5

183-106VR

SPRING WASHER

2шт.

6

166351A1

BOLT,Sems, M10 x 20mm

2шт.

7

KHJ30520

BRACKET

1шт.

8

KHJ11480

HYDRAULIC HOSE,6.35 mm ID x 3950.00 mm

1шт.

9

150496A1

MOUNTING CLIP

3шт.

10

KHR10220

MOUNTING CLIP

3шт.
