(35.360.AJ[04]) - VAR - 461869 - HAMMER CIRCUIT, SOLENOID VALVE, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (35.360.AJ[04]) - VAR - 461869 - HAMMER CIRCUIT, SOLENOID VALVE, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

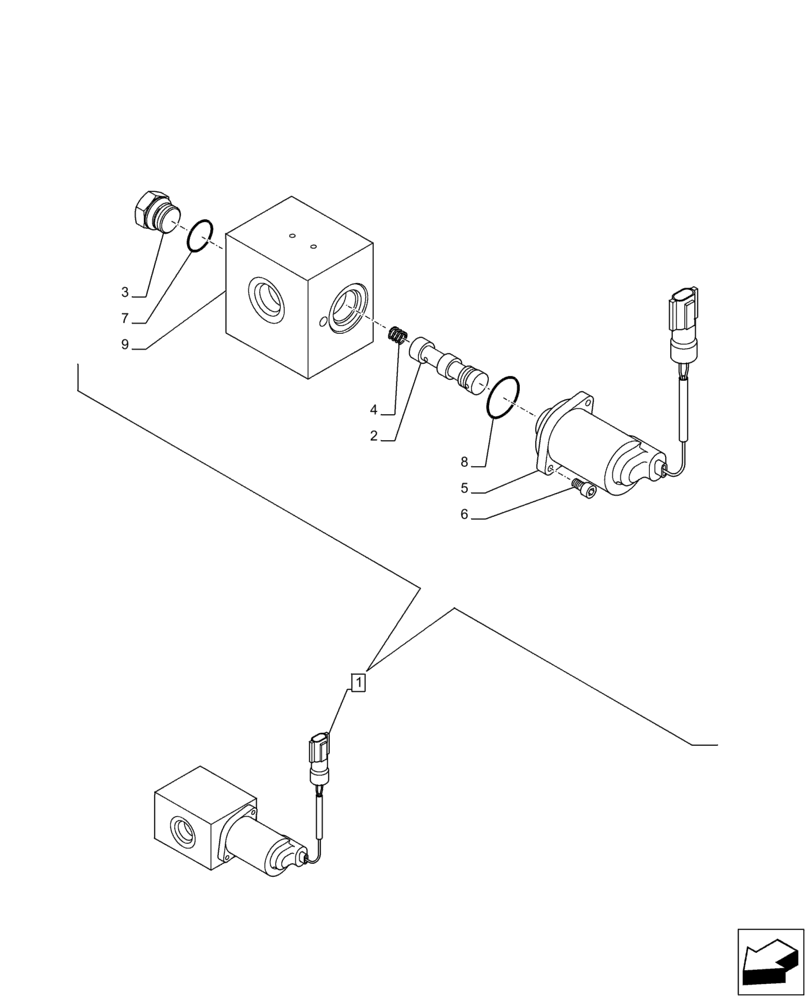

Схема запчастей Case CX300D LC - (35.360.AJ[04]) - VAR - 461869 - HAMMER CIRCUIT, SOLENOID VALVE, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
9
6
3
5
8
1
4
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

162538A1

VALVE

ASSY, Incl 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

3

155456A1

PLUG

1шт.

4

LSC0278

COMPRESSION SPRING

1шт.

5

CDP0873

SOLENOID VALVE

1шт.

6

160298A1

BOLT,Hex Skt

4шт.

7

154462A1

O-RING

1шт.

8

154482A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.
