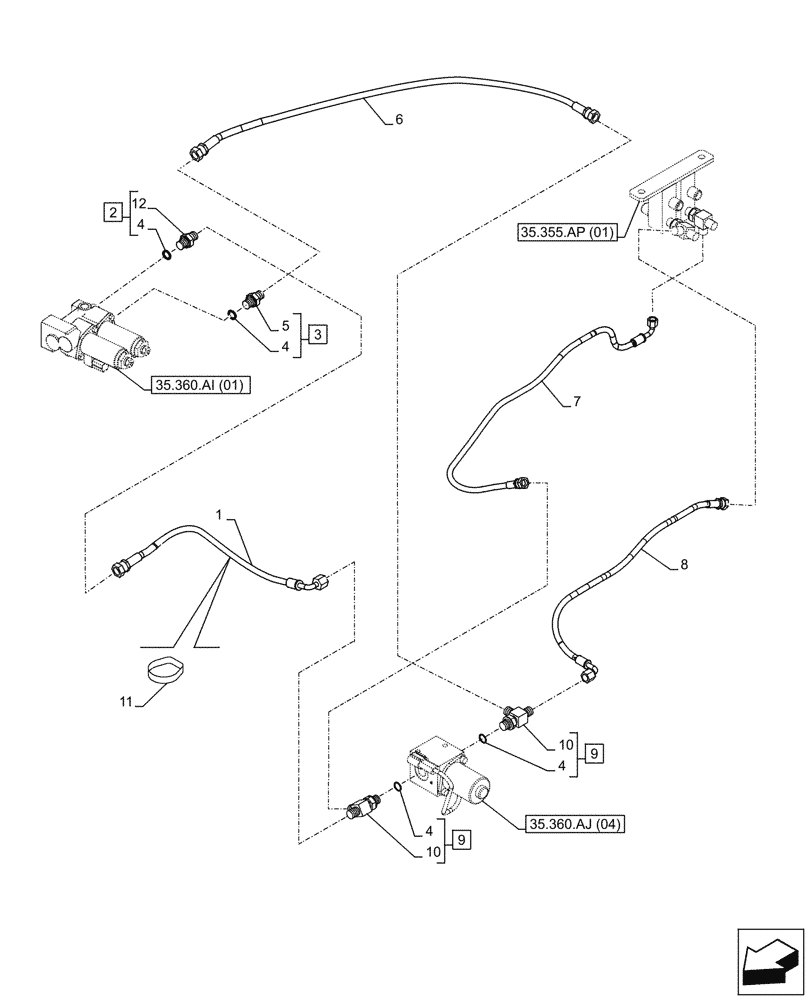

Запчасти Case CX300D LC (35.360.AJ[03]) - VAR - 461869 - HAMMER CIRCUIT, SHEARS, SOLENOID VALVE, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ2163

HOSE

6 x 620mm

1шт.

2

161841A1

HYD CONNECTOR

ASSY, Incl 4 (Qty 1), 12

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 4 (Qty 1), 5

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Inlc in 3

1шт.

6

KHJ31500

HOSE

6 x 620mm

1шт.

7

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

1шт.

8

KHJ2195

HOSE

6 x 680mm

1шт.

9

159497A1

TEE

ASSY, Incl 4 (Qty 1), 10

2шт.

10

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 9

2шт.

11

150496A1

MOUNTING CLIP

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.
