(35.360.AF[04]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (35.360.AF[04]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

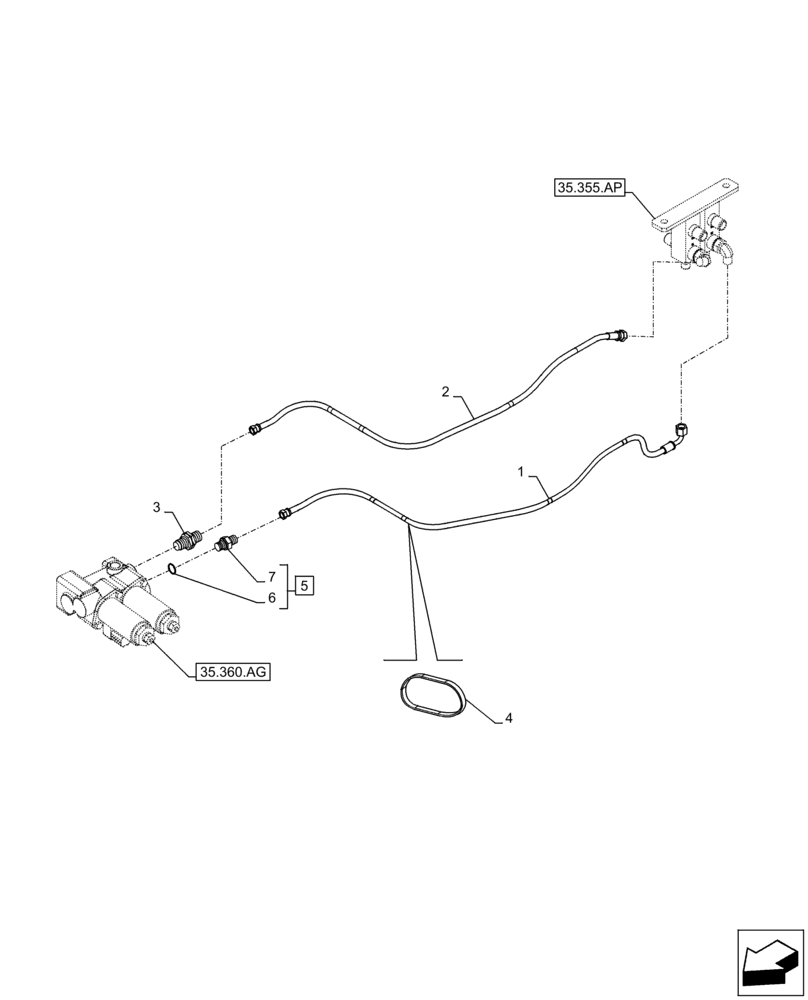

Схема запчастей Case CX300D LC - (35.360.AF[04]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
2
3
6
7
35.355.ap
4
5
1
35.360.ag
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2088

HOSE

6 x 850mm

1шт.

2

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

1шт.

3

161841A1

HYD CONNECTOR

1шт.

4

150496A1

MOUNTING CLIP

1шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 6, 7

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

Выбрано товаров: 7
