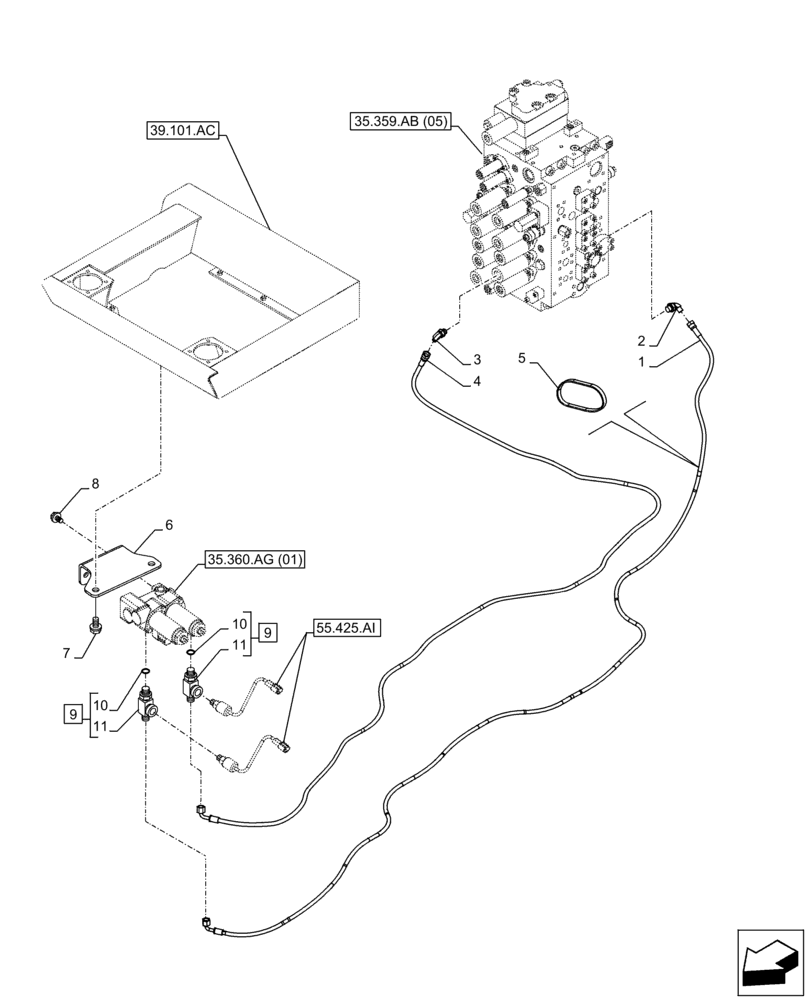

Запчасти Case CX300D LC (35.360.AF[03]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ12240

HOSE

6 x 3750mm

1шт.

2

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

3

KHJ28630

ELBOW

G1/4" x G1/4"

1шт.

4

KHJ14800

HYDRAULIC HOSE

6 x 4300mm

1шт.

5

150496A1

MOUNTING CLIP

1шт.

6

KHJ28770

BRACKET

1шт.

7

166351A1

BOLT,Sems, M10 x 20mm

2шт.

8

166345A1

BOLT

M8 x 16

2шт.

9

167666A1

FITTING

ASSY, Incl 10, 11

2шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.
