(35.360.AF[02]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (35.360.AF[02]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

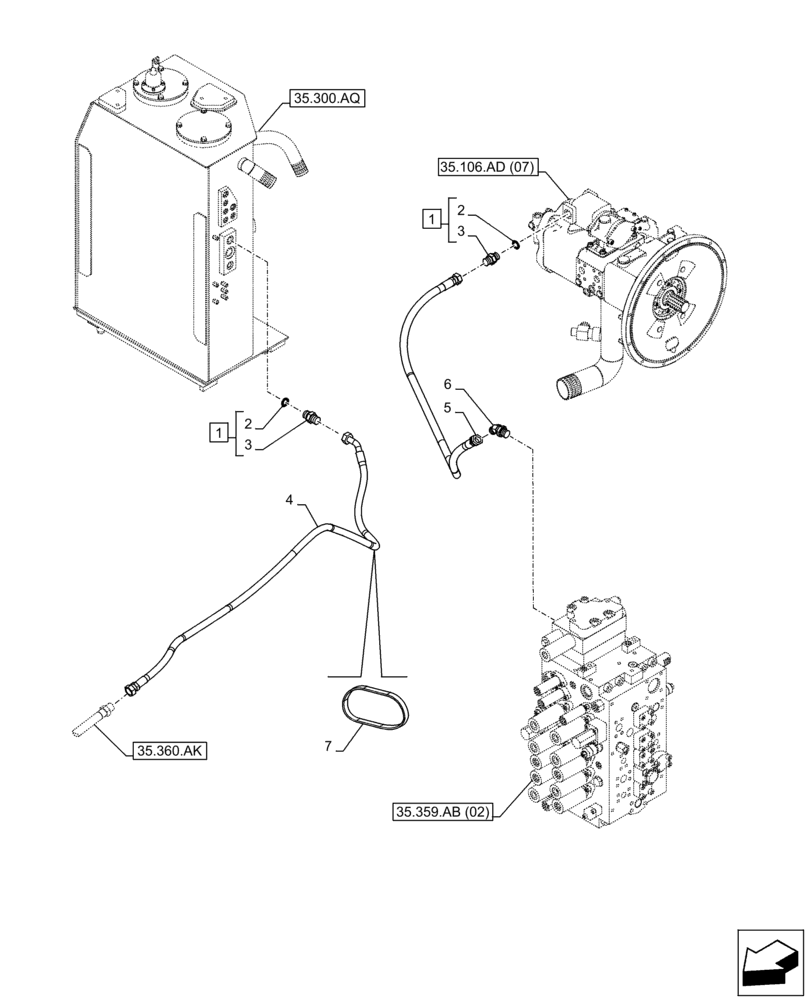

Схема запчастей Case CX300D LC - (35.360.AF[02]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.106.ad (07)
6
5
35.300.aq
1
2
7
3
1
35.360.ak
3
4
2
35.359.ab (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 2, 3

2шт.

2

154487A1

O-RING

2шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

2шт.

4

KBJ23480

HYDRAULIC HOSE

12 X 1780mm

1шт.

5

KBJ20100

HYDRAULIC HOSE

12 x 1400mm

1шт.

6

KHJ28650

ELBOW

G1/2" x G1/2"

1шт.

7

150496A1

MOUNTING CLIP

2шт.

Выбрано товаров: 7
