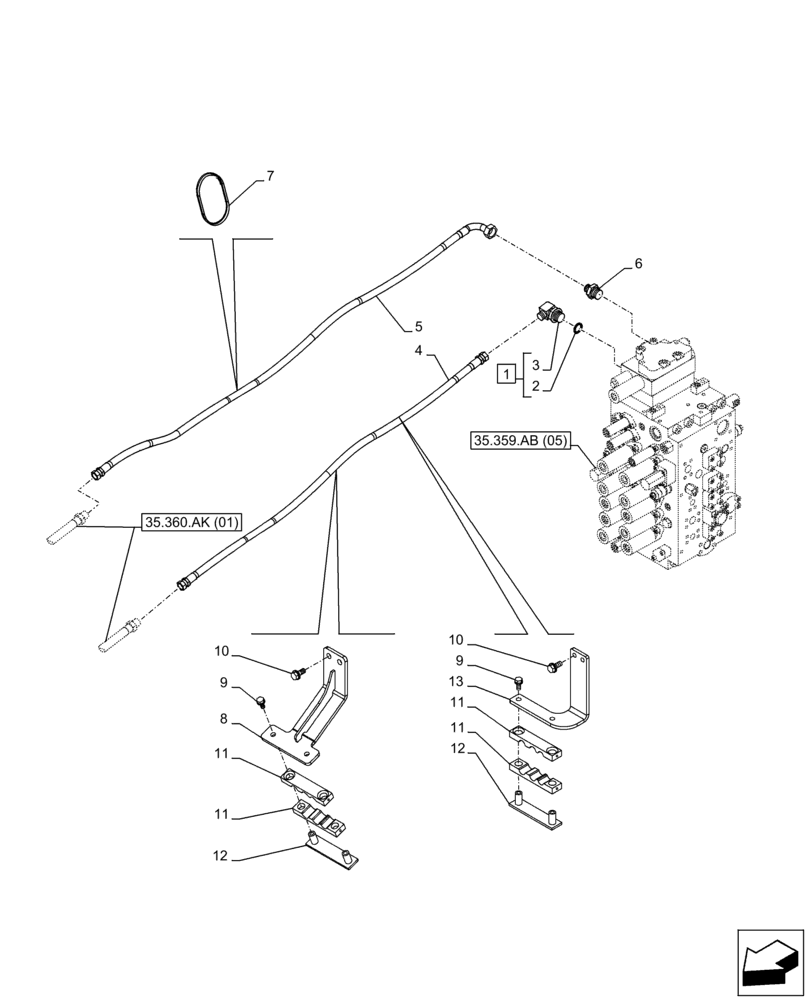

Запчасти Case CX300D LC (35.360.AF[01]) - VAR - 461863 - HYDRAULIC LINE, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

157936A1

ELBOW

ASSY, Incl 2, 3

1шт.

2

154503A1

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 1

1шт.

4

KBJ23460

HYDRAULIC HOSE

12 x 1550mm

1шт.

5

KBJ23470

HYDRAULIC HOSE

12 x 1700mm

1шт.

6

168988A1

ADAPTER

1шт.

7

150496A1

MOUNTING CLIP

3шт.

8

KBJ25370

BRACKET

1шт.

9

166052A1

BOLT

M10 x 25mm

4шт.

10

166352A1

BOLT

M12 x 30mm

4шт.

11

KRJ11580

HOSE CLIP

4шт.

12

KRJ11590

SUPPORT

2шт.

13

KBJ25380

BRACKET

1шт.
