(35.360.AB[07]) - VAR - 461871 - SHEARS, LINE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (35.360.AB[07]) - VAR - 461871 - SHEARS, LINE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

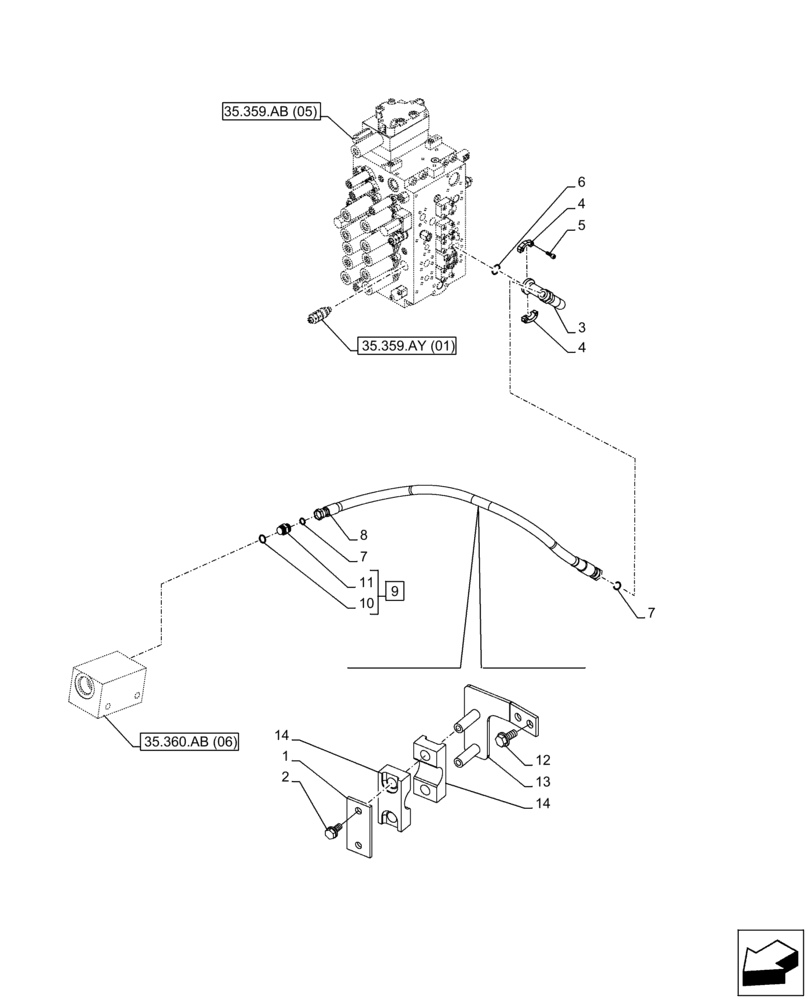

Схема запчастей Case CX300D LC - (35.360.AB[07]) - VAR - 461871 - SHEARS, LINE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
4
2
7
1
11
9
6
3
12
14
35.360.ab (06)
35.359.ab (05)
13
35.359.ay (01)
14
7
5
10
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ10800

PLATE

1шт.

2

166052A1

BOLT

2шт.

3

KBJ20180

TUBE

1шт.

4

150124A1

FLANGE

2шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

6

155211A1

O-RING

1шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

8

KSJ13320

HOSE ASSY.

1шт.

9

KHJ1349

ADAPTER

ASSY, Incl 10, 11

1шт.

10

154523A1

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

12

166352A1

BOLT

2шт.

13

KBJ23700

BRACKET

1шт.

14

KRJ11450

HOSE CLIP

2шт.
