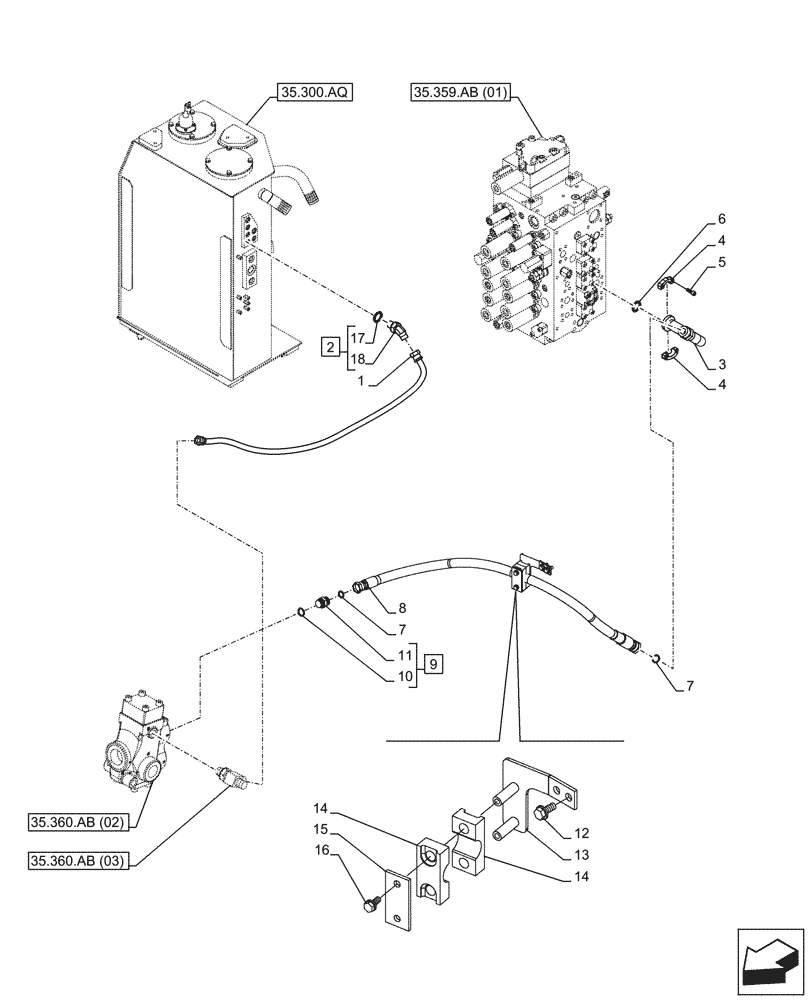

Запчасти Case CX300D LC (35.360.AB[05]) - VAR - 461869 - HAMMER CIRCUIT, LINE, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

2

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 17, 18

1шт.

3

KBJ20180

TUBE

1шт.

4

153459A1

FLANGE

2шт.

5

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

6

155211A1

O-RING

1шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

8

KSJ13320

HOSE ASSY.

1шт.

9

KHJ1349

ADAPTER

ASSY, Incl 10, 11

1шт.

10

154523A1

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

12

166352A1

BOLT

M12 x 30mm

6шт.

13

KBJ23700

BRACKET

1шт.

14

KRJ11450

HOSE CLIP

2шт.

15

KRJ10800

PLATE

1шт.

16

166052A1

BOLT

M10 x 25mm

2шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 2

1шт.
