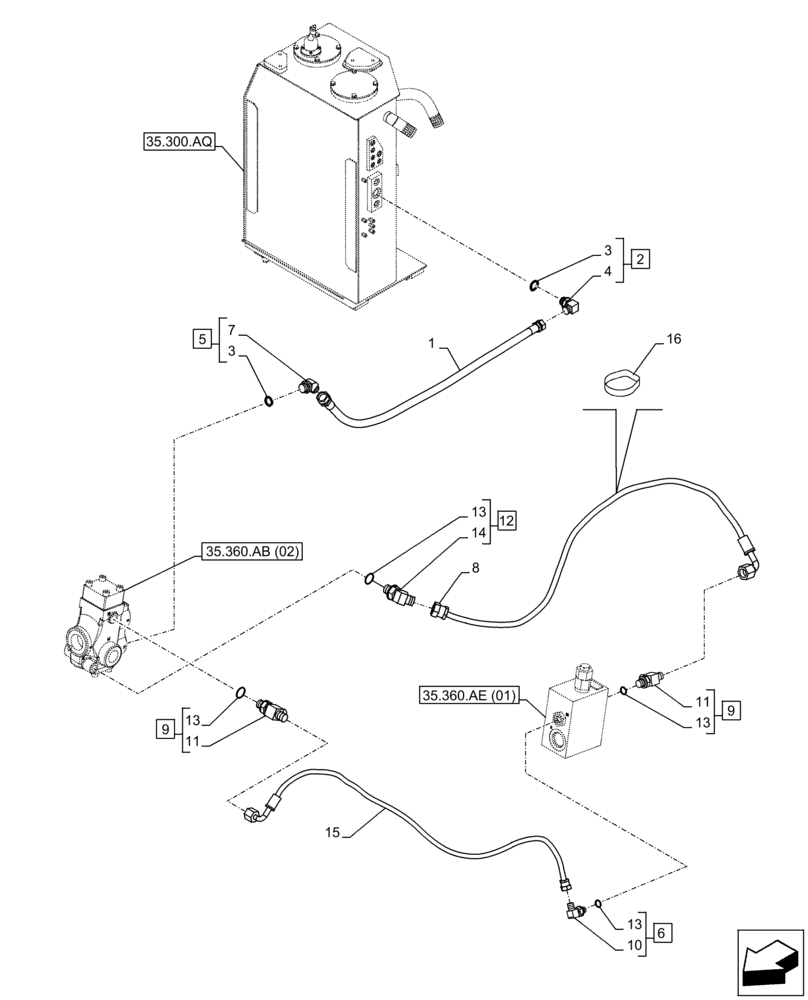

Запчасти Case CX300D LC (35.360.AB[04]) - VAR - 461869 - HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KBJ19800

HYDRAULIC HOSE

1шт.

2

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, Incl 3 (Qty 1), 4

1шт.

3

154523A1

O-RING

2шт.

4

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 2

1шт.

5

157587A1

ELBOW

ASSY, Incl 3 (Qty 1), 7

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

ASSY, Incl 13 (Qty 1), 10

1шт.

7

NSS

NOT SOLD SEPARAT

45°-Fitting, Incl in 5

1шт.

8

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

1шт.

9

159497A1

TEE

ASSY, Incl 11, 13 (Qty 1)

2шт.

10

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 6

1шт.

11

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 9

1шт.

12

150933A1

ELBOW

ASSY, Incl 13 (Qty 1), 14

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

14

NSS

NOT SOLD SEPARAT

45°-Fitting, Incl in 12

1шт.

15

KHJ2090

HOSE

1шт.

16

150496A1

MOUNTING CLIP

5шт.
