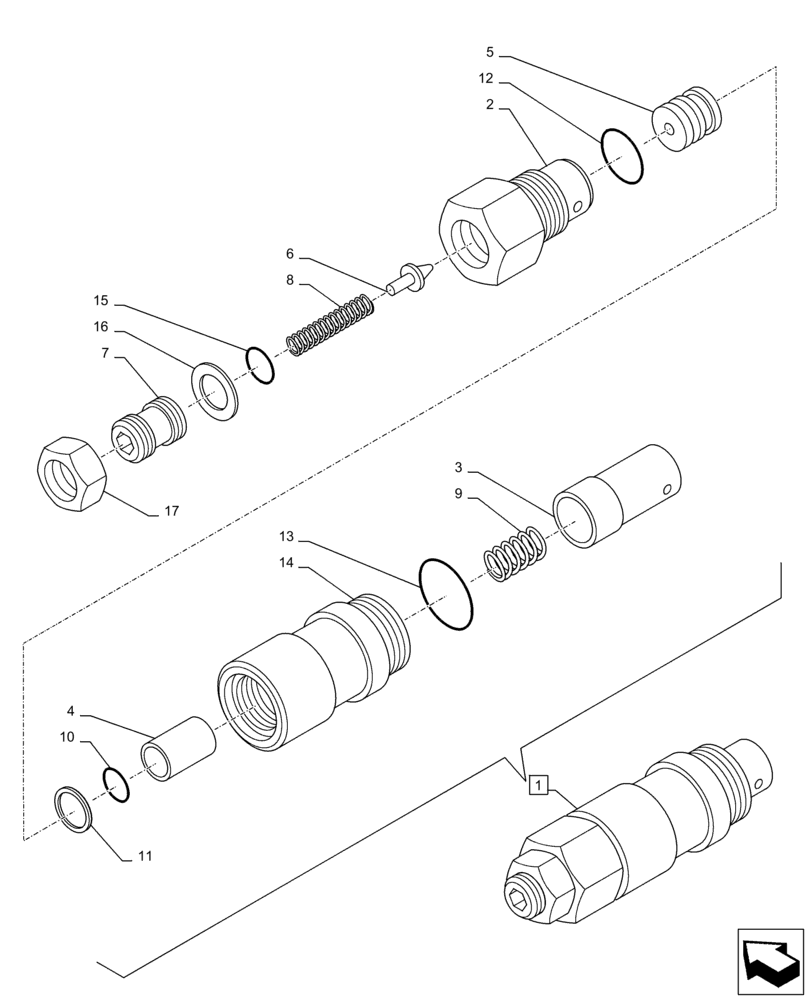

Запчасти Case CX300D LC (35.359.AY[02]) - VAR - 461869, 461871 - RELIEF VALVE, HAMMER CIRCUIT, AUXILIARY, CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX300D LC - (35.359.AY[02]) - VAR - 461869, 461871 - RELIEF VALVE, HAMMER CIRCUIT, AUXILIARY, CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5294539.png)
4
13
12
16
9
8
11
3
14
1
6
10
7
17
2
5
15
№
Артикул
Название
Примечание
Количество
1
155745A1
VALVE PRESSURE RELIE
ASSY, Incl 2 - 17
2шт.
2
NSS
NOT SOLD SEPARAT
Plug, Incl in 1
2шт.
3
NSS
NOT SOLD SEPARAT
Sleeve, Incl in 1
2шт.
4
NSS
NOT SOLD SEPARAT
Spacer, Incl in 1
2шт.
5
NSS
NOT SOLD SEPARAT
Poppet, Incl in 1
2шт.
6
NSS
NOT SOLD SEPARAT
Poppet, Incl in 1
2шт.
7
NSS
NOT SOLD SEPARAT
Adjuster, Incl in 1
2шт.
8
NSS
NOT SOLD SEPARAT
Spring, Incl in 1
2шт.
9
NSS
NOT SOLD SEPARAT
Spring, Incl in 1
2шт.
10
154463A1
O-RING
2шт.
11
164905A1
BACK-UP RING
2шт.
12
159976A1
O-RING
2шт.
14
NSS
NOT SOLD SEPARAT
Cap, Incl in 1
2шт.
15
159977A1
O-RING
2шт.
16
159979A1
BACK-UP RING
2шт.
17
NSS
NOT SOLD SEPARAT
Nut, Incl in 1
2шт.
Выбрано товаров: 17
