Запчасти Case CX300D LC (35.359.AE) - CONTROL VALVE LINE, HYDRAULIC OIL, TANK (35) - HYDRAULIC SYSTEMS

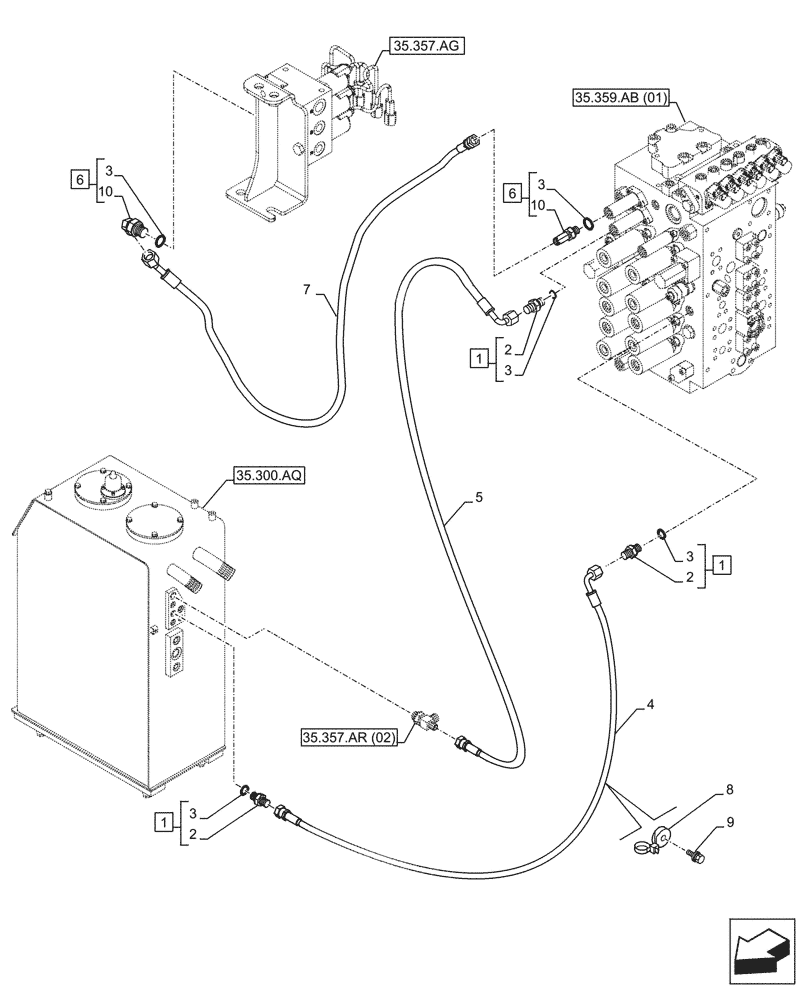

Схема запчастей Case CX300D LC - (35.359.AE) - CONTROL VALVE LINE, HYDRAULIC OIL, TANK (35) - HYDRAULIC SYSTEMS
35.359.ab (01)
3
7
9
10
2
3
6
2
1
10
4
3
6
1
8
2
1
3
3
5
35.357.ar (02)
35.357.ag
35.300.aq

Артикул

Название

Примечание

Количество

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 2, 3 (Qty 1)

3шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

3шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

4

KHJ13800

HOSE

6mm ID x 1350mm

1шт.

5

KHJ2309

HOSE

6mm ID x 550mm

1шт.

6

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 10, 3 (Qty 1)

2шт.

7

KHJ25410

HOSE

6mm ID x 2450mm

1шт.

8

KHR2584

CLAMP

M8

1шт.

9

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

10

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

2шт.

Выбрано товаров: 10
