(35.359.AB[07]) - VAR - 461863 - CONTROL VALVE, COMPONENT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (35.359.AB[07]) - VAR - 461863 - CONTROL VALVE, COMPONENT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

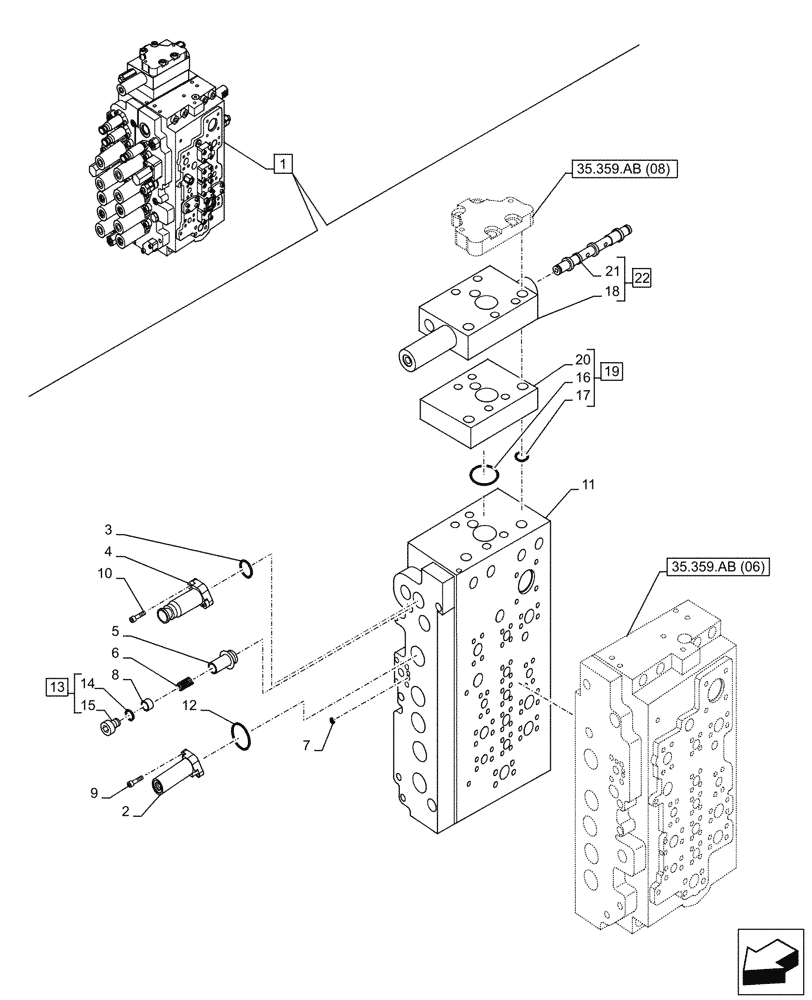

Схема запчастей Case CX300D LC - (35.359.AB[07]) - VAR - 461863 - CONTROL VALVE, COMPONENT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.359.ab (08)
13
22
10
6
9
35.359.ab (06)
18
20
1
17
7
8
4
3
11
19
16
2
21
12
14
5
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KBJ19222

CONTROL VALVE

Grey, ASSY, Incl 2 - 22

1шт.

See also Figure 35.359.AB (05), 35.359.AB (06), 35.359.AB (08), 35.359.AY (03)

1шт.

2

LR023640

CAP

6шт.

3

LE014890

O-RING,3.53mm Thk x 25.7mm ID, Cl 6

3шт.

4

LR018610

CAP

3шт.

5

LJ00976

POPPET

1шт.

6

LG00417

COMPRESSION SPRING

1шт.

7

LE027170

O-RING

6шт.

8

LH007440

SPACER

1шт.

9

160287A1

BOLT,Hex Skt

12шт.

10

LUC0118

BOLT,Hex Skt Hd

6шт.

11

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 1

1шт.

12

LE026800

O-RING

6шт.

13

163370A1

PLUG

ASSY, Incl 14, 15

1шт.

14

154487A1

O-RING

1шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 13

1шт.

16

LE027200

O-RING

1шт.

17

LE012520

O-RING

3шт.

18

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 1

1шт.

19

LJ014770

CONNECTING BLOCK

ASSY, Incl 16, 17, 20

1шт.

20

NSS

NOT SOLD SEPARAT

Inlet Section Valve, Incl in 19

1шт.

21

NSS

NOT SOLD SEPARAT

Spool, Incl in 22

1шт.

22

LJ014760

HYD VALVE SECTION

ASSY, Incl 18, 21

1шт.
