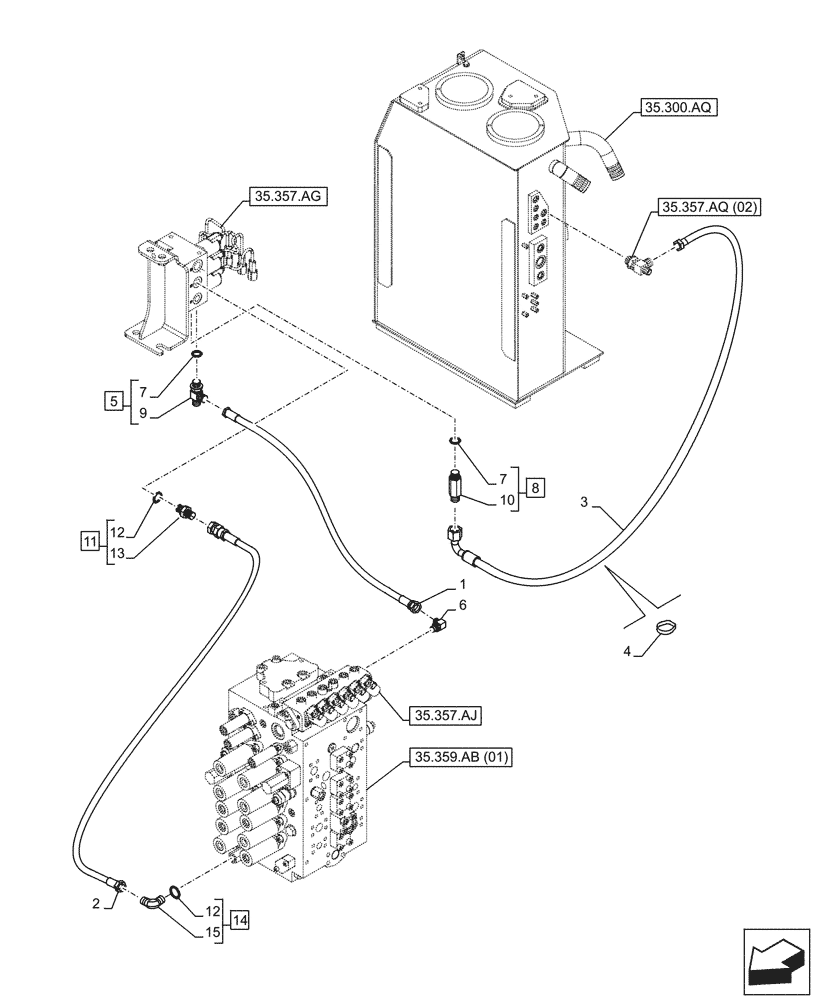

Запчасти Case CX300D LC (35.357.AR[01]) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

KHJ13670

HYDRAULIC HOSE,9.52 mm ID x 1950.00 mm

9mm ID x 1950mm

1шт.

2

KHJ2061

HOSE

6mm x 1750mm

1шт.

3

KHJ25970

HOSE

9mm ID x 2350mm

1шт.

4

150496A1

MOUNTING CLIP

250mm

1шт.

5

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, G3/8", Incl 7 (Qty1), 9

1шт.

6

KHJ29610

ELBOW

1шт.

7

154475A1

O-RING

2шт.

8

KAJ2351

FITTING

ASSY, G3/8", Incl 7 (Qty1), 10

1шт.

9

NSS

NOT SOLD SEPARAT

Tee, Incl in 5

1шт.

10

NSS

NOT SOLD SEPARAT

Adapter, Incl in 8

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 12 (Qty 1), 13

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

14

KHJ28580

ELBOW

ASSY, Incl 12 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 14

1шт.
