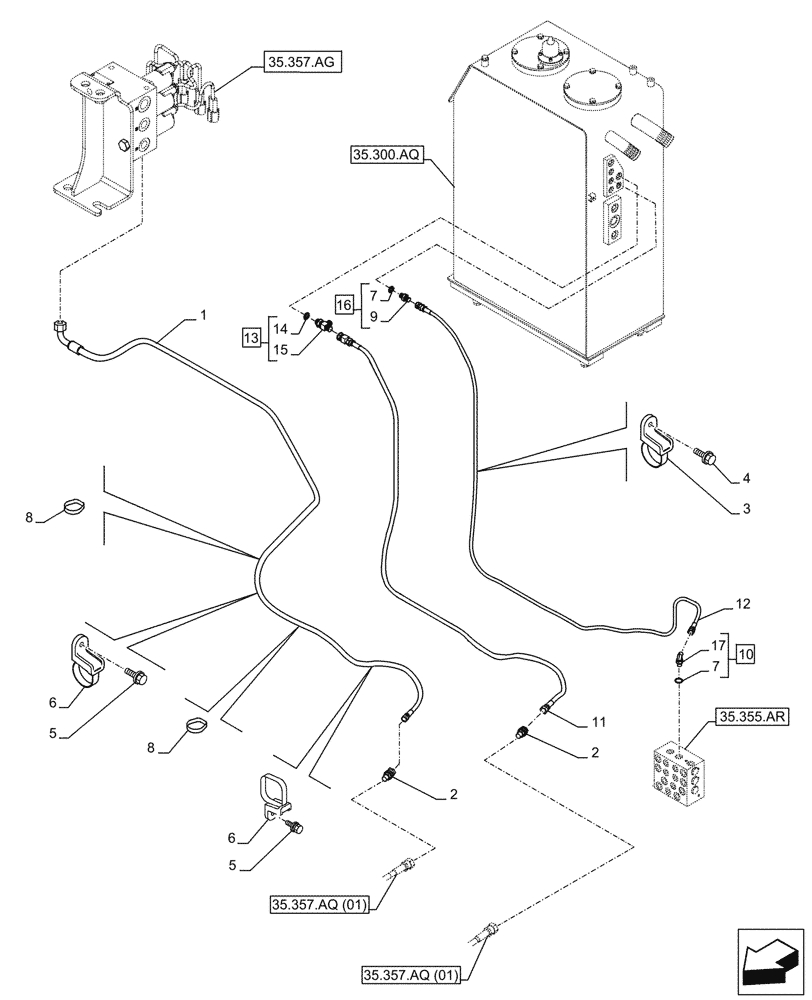

Запчасти Case CX300D LC (35.357.AQ[02]) - PILOT VALVE, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

KHJ11030

HOSE

9mm ID x 3900mm

1шт.

2

162826A1

ADAPTER

G3/8"

2шт.

3

KHR2582

CLAMP

M10

2шт.

4

KHJ2298

BOLT,Spcl

M10 x 25mm

2шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

2шт.

6

KHR2581

CLAMP

M8

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

8

150496A1

MOUNTING CLIP

250mm

5шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 16

1шт.

10

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 7 (Qty 1), 17

1шт.

11

KHJ2135

HOSE

9mm ID x 2500mm

1шт.

12

KHJ2075

HOSE

6mm ID x 2650mm

1шт.

13

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, G3/8", 14, 15

1шт.

14

154475A1

O-RING

1шт.

15

NSS

NOT SOLD SEPARAT

Tee, Incl in 13

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 7 (Qty 1), 9

1шт.

17

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 10

1шт.
