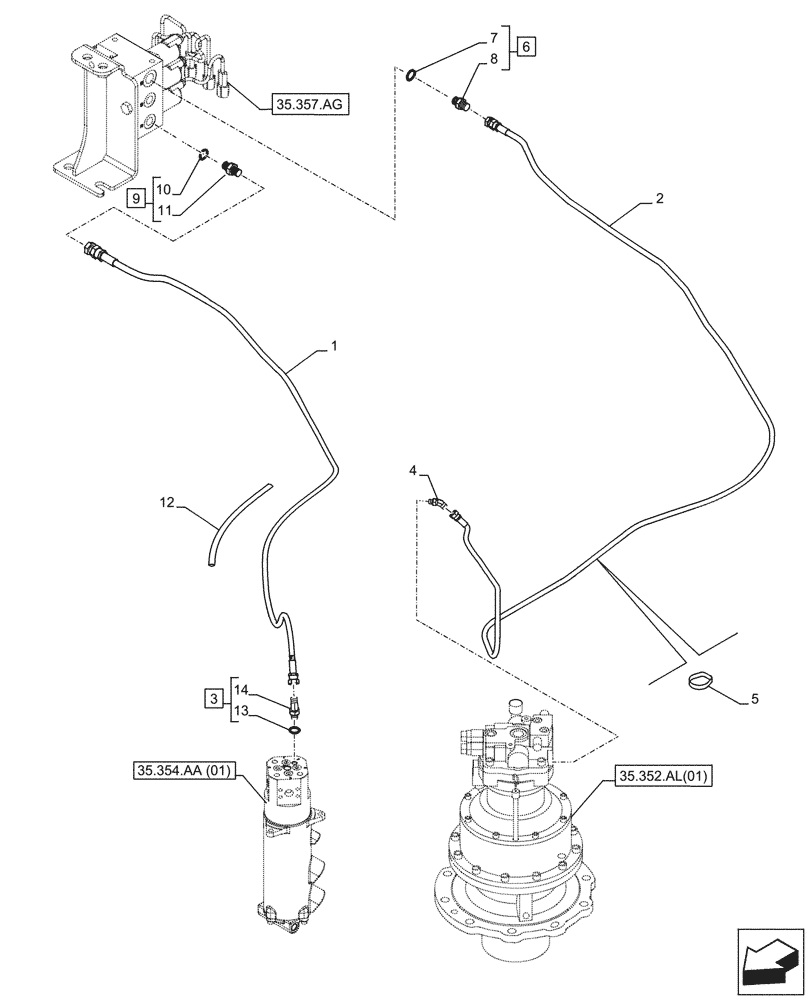

Запчасти Case CX300D LC (35.357.AO[05]) - MAIN, SOLENOID VALVE, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

1

KHJ2074

HOSE

6mm ID x 2600mm

1шт.

2

KHJ2207

HOSE

9mm ID x 2600mm

1шт.

3

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 13, 14

1шт.

4

KHJ28750

ELBOW

G1/4" x G3/8"

1шт.

5

150496A1

MOUNTING CLIP

250mm

4шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 7, 8

1шт.

7

154475A1

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 10, 11

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

12

152660A1

PLASTIC-RUBBER TUBE

10mm x 300mm

1шт.

13

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 3

1шт.
