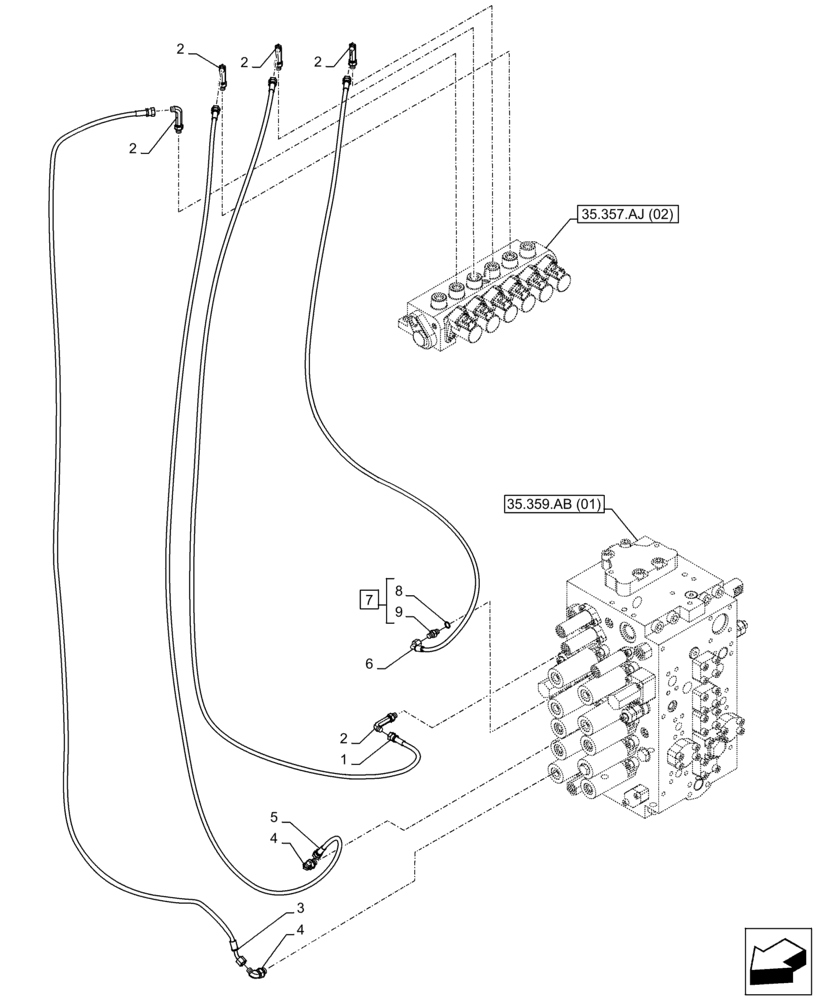

Запчасти Case CX300D LC (35.357.AO[04]) - MAIN, SOLENOID VALVE, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

1

KHJ2394

HOSE ASSY.

1шт.

2

KHJ28810

ELBOW

5шт.

3

KHJ14910

HYDRAULIC HOSE,6.35 mm ID x 800.00 mm

1шт.

4

KHJ28690

ELBOW

2шт.

5

KHJ2047

HOSE

1шт.

6

KHJ2239

HOSE,520.00 mm

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 8, 9

1шт.

8

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.
