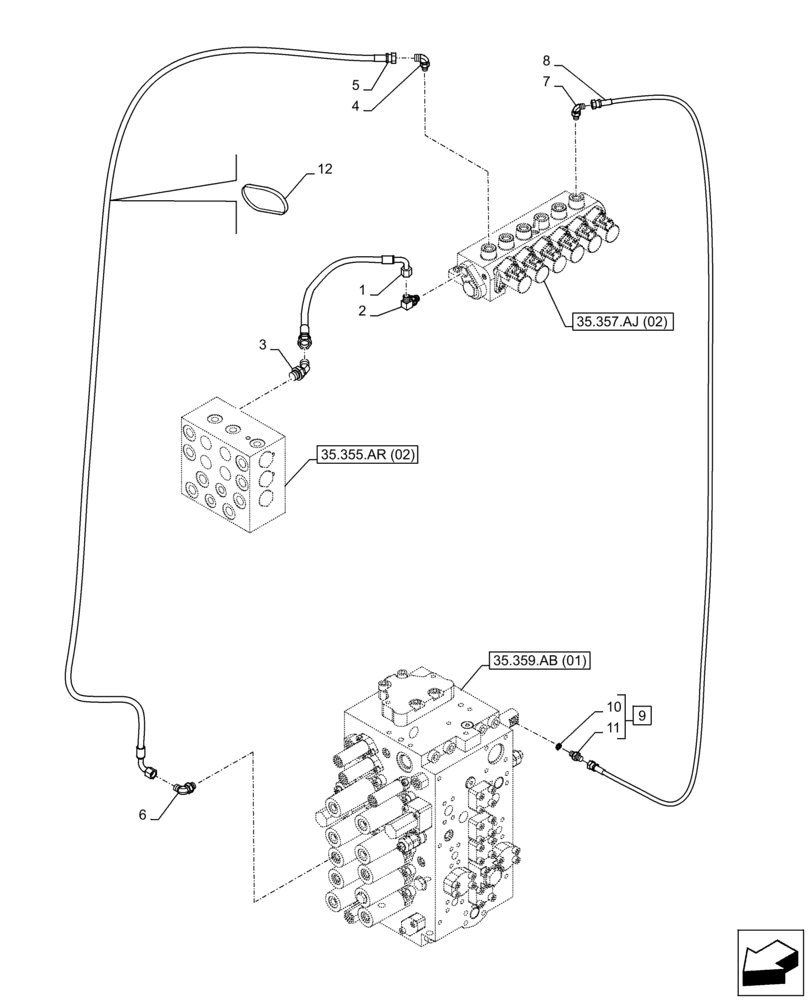

Запчасти Case CX300D LC (35.357.AO[03]) - MAIN, SOLENOID VALVE, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

1

KHJ2626

HYDRAULIC HOSE,2650.00 mm

1шт.

2

KHJ29610

ELBOW

1шт.

3

KHJ28640

ELBOW

1шт.

4

KHJ28710

ELBOW

1шт.

5

KHJ2809

HOSE,9.5 mm ID x 600.00 mm

1шт.

6

KHJ28590

ELBOW

1шт.

7

KHJ28580

ELBOW

1шт.

8

KHJ2190

HOSE

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 10, 11

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

12

KHH0142

BAND

3шт.
