Запчасти Case CX300D LC (35.357.AO[01]) - VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

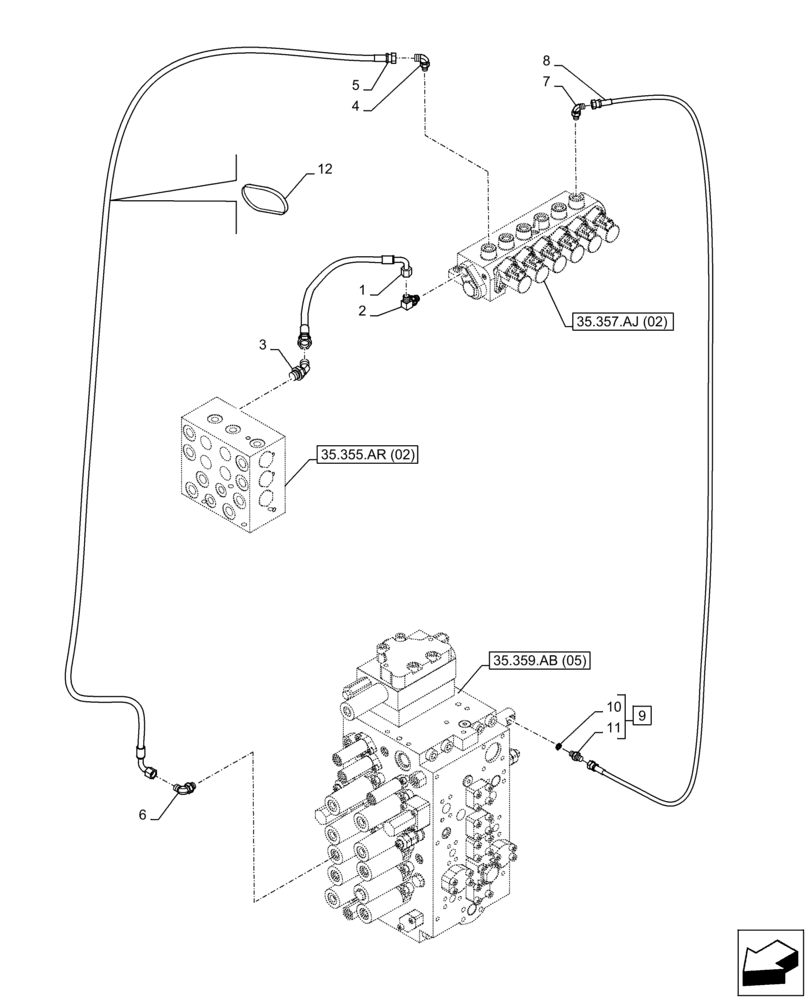

Схема запчастей Case CX300D LC - (35.357.AO[01]) - VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
11
3
8
2
6
35.355.ar (02)
12
10
35.359.ab (05)
4
5
9
7
35.357.aj (02)
1

Артикул

Название

Примечание

Количество

1

KHJ2626

HYDRAULIC HOSE,2650.00 mm

1шт.

2

KHJ29610

ELBOW

G3/8" x G3/8"

1шт.

3

KHJ28640

ELBOW

G3/8" x G3/8"

1шт.

4

KHJ28710

ELBOW

G1/4" x G3/8"

1шт.

5

KHJ2809

HOSE,9.5 mm ID x 600.00 mm

1шт.

6

KHJ28590

ELBOW

G3/8" x G3/8"

1шт.

7

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

8

KHJ2190

HOSE

6mm ID x 420mm

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 10, 11

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

12

KHH0142

BAND

3шт.

Выбрано товаров: 12
