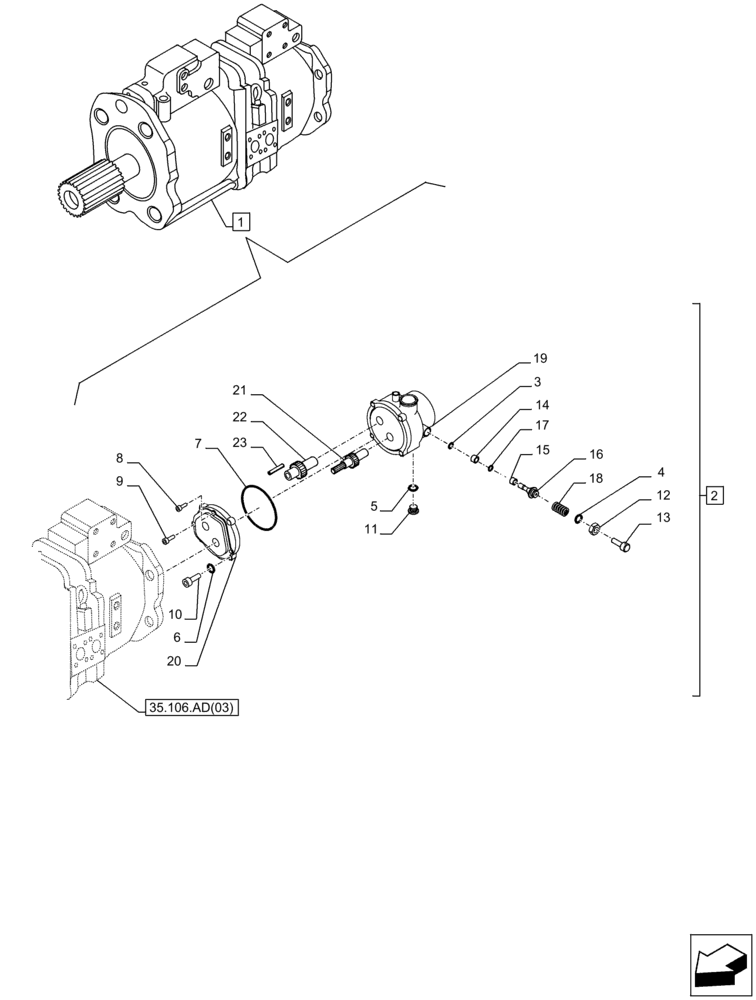

Запчасти Case CX300D LC (35.357.AC[02]) - VAR - 461863 - HYDRAULIC PUMP, PILOT, CLAMSHELL BUCKET, ROTATION, W/ELECTRICAL PROPORTIONAL, CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KBJ19181

HYDRAULIC PUMP

ASSY, Incl 2 - 23

1шт.

See also Figure 35.106.AD (05), 35.106.AD (06), 35.106.AD (07), 35.106.AD (08), 35.106.AL (02), 35.106.AN, 35.357.AC (02)

1шт.

2

LJ018430

HYDRAULIC PUMP

ASSY, Incl 3 - 23

1шт.

3

163668A1

RING, LOCKING

1шт.

4

154483A1

O-RING

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

LE013510

O-RING

1шт.

7

163667A1

SEALING RING

1шт.

8

LA00594

BOLT,Hex Skt, M8 x 65mm, Cl 12.9

2шт.

9

LA00593

BOLT,Hex Skt, M8 x 50mm, Cl 12.9

2шт.

10

163666A1

FLANGE BOLT

4шт.

11

155496A1

PLUG

1шт.

12

163662A1

LOCK NUT

1шт.

13

LF00043

ADJUSTER

1шт.

14

163663A1

FILTER

1шт.

15

LR017720

GASKET

1шт.

16

LJ017580

VALVE POPPET

1шт.

17

LE01175

RING

1шт.

18

LG00536

SPRING

1шт.

19

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

23

TA00048

SPECIAL PIN

2шт.
