(35.356.AR[06]) - VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION

Запчасти Case CX300D LC (35.356.AR[06]) - VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

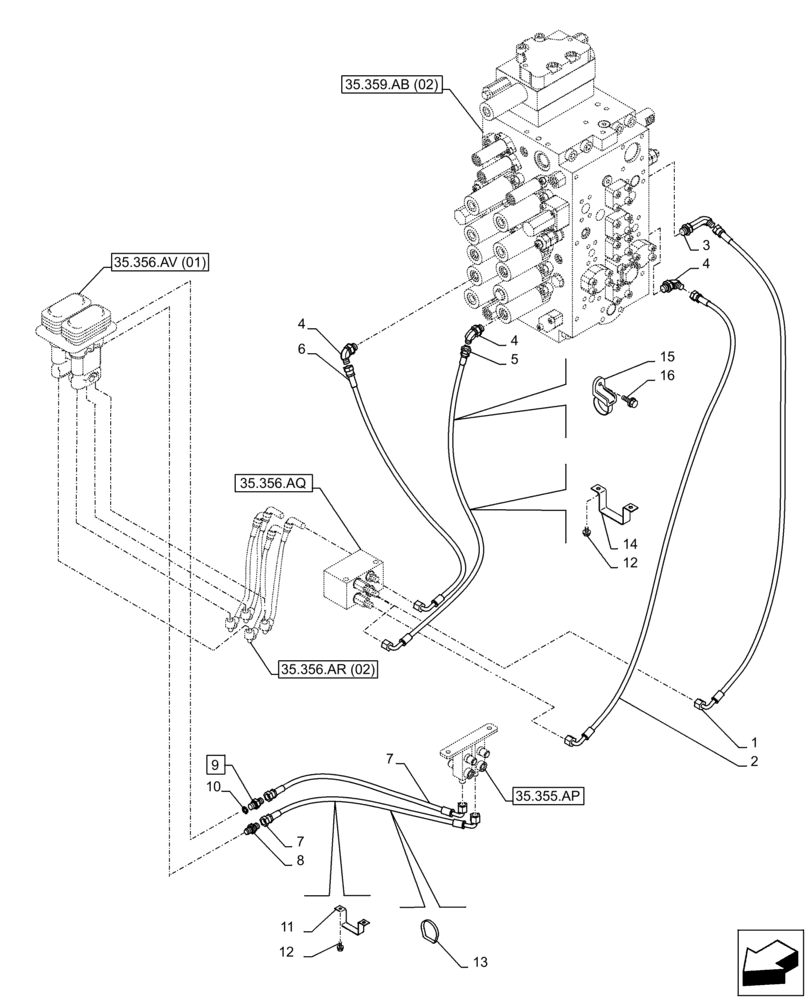

Схема запчастей Case CX300D LC - (35.356.AR[06]) - VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
8
35.356.ar (02)
4
35.356.aq
1
12
16
7
35.356.av (01)
5
15
3
13
6
14
11
35.355.ap
35.359.ab (02)
10
4
4
12
9
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2248

HOSE

6mm ID x 3000mm

1шт.

2

KHJ2165

HOSE

6mm ID x 2900mm

1шт.

3

KHJ28880

ELBOW

G3/8" x G1"

1шт.

4

KHJ28690

ELBOW

G3/8" x G1/4"

3шт.

5

KHJ13660

HYDRAULIC HOSE

6mm ID x 3300mm

1шт.

6

KHJ17550

HOSE

6mm ID x 3350mm

1шт.

7

KHJ2092

HOSE

6mm ID x 1100mm

2шт.

8

161841A1

HYD CONNECTOR

G1/4"

1шт.

9

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KHJ1220

COLLAR

2шт.

12

166345A1

BOLT

M8 x 16mm

8шт.

13

150498A1

MOUNTING CLIP

7шт.

14

KHJ24020

CLAMP

2шт.

15

KHR2581

CLAMP

3шт.

16

KHJ1215

BOLT,Spcl

M8 x 25mm

3шт.
