(35.355.AR[02]) - JOYSTICK, CUSHION, VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX300D LC (35.355.AR[02]) - JOYSTICK, CUSHION, VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

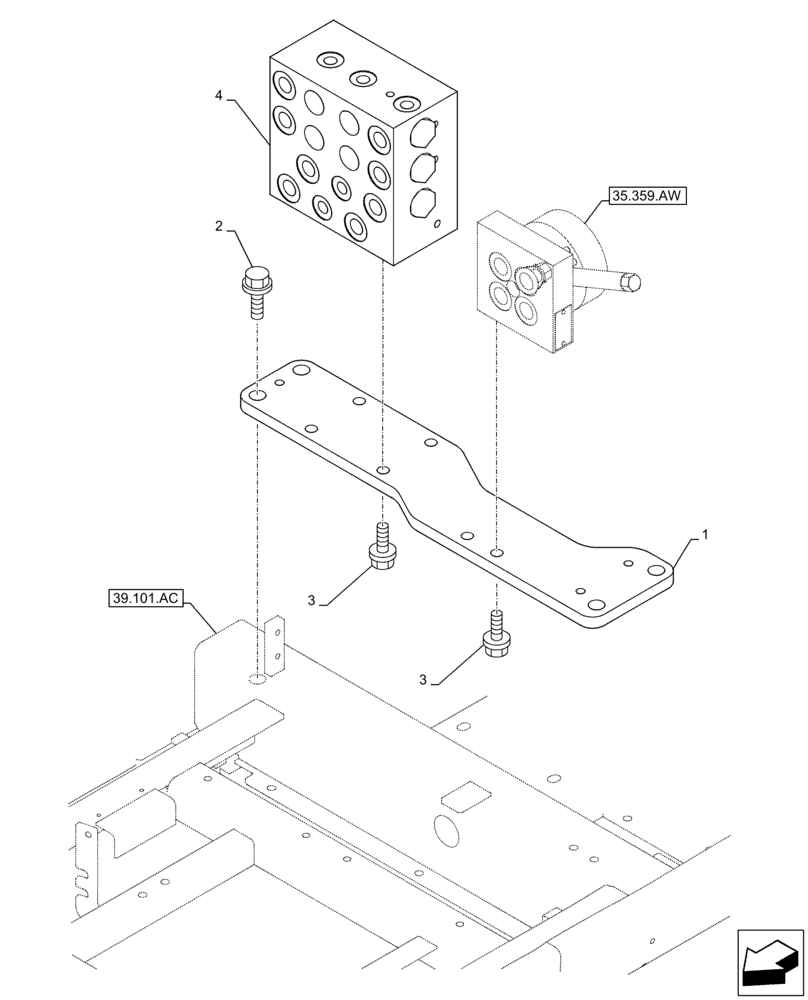

Схема запчастей Case CX300D LC - (35.355.AR[02]) - JOYSTICK, CUSHION, VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
1
2
35.359.aw
39.101.ac
3
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ24480

BRACKET, SUPPORTING

1шт.

2

166352A1

BOLT

M12 x 30mm

4шт.

3

166347A1

BOLT,Sems, M10 x 30mm

6шт.

4

KBJ22630

VALVE

1шт.
