(35.355.AO) - STD + VAR - 461558 - JOYSTICK, DRAIN LINE, BLOCK, CONTROL PATTERN SELECTION

Запчасти Case CX300D LC (35.355.AO) - STD + VAR - 461558 - JOYSTICK, DRAIN LINE, BLOCK, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

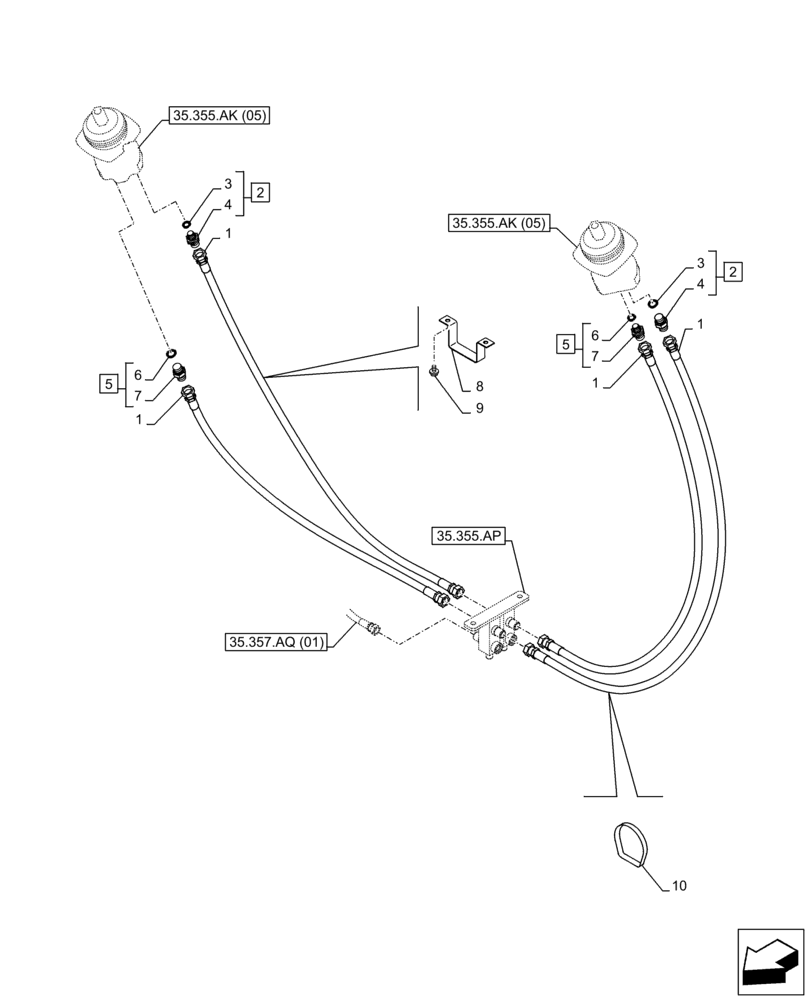

Схема запчастей Case CX300D LC - (35.355.AO) - STD + VAR - 461558 - JOYSTICK, DRAIN LINE, BLOCK, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
1
9
2
8
3
4
1
2
6
1
6
7
5
10
35.357.aq (01)
35.355.ak (05)
35.355.ap
7
3
4
5
1
35.355.ak (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159213A1

HYDRAULIC HOSE

4шт.

2

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 3, 4

2шт.

3

154475A1

O-RING

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

2шт.

5

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

ASSY, Incl 6, 7

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

8

KHJ13770

COLLAR

2шт.

9

166345A1

BOLT

4шт.

10

150498A1

MOUNTING CLIP

5шт.
