(35.355.AK[02]) - VAR - 461865 - 461869 - 461871 - JOYSTICK, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX300D LC (35.355.AK[02]) - VAR - 461865 - 461869 - 461871 - JOYSTICK, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

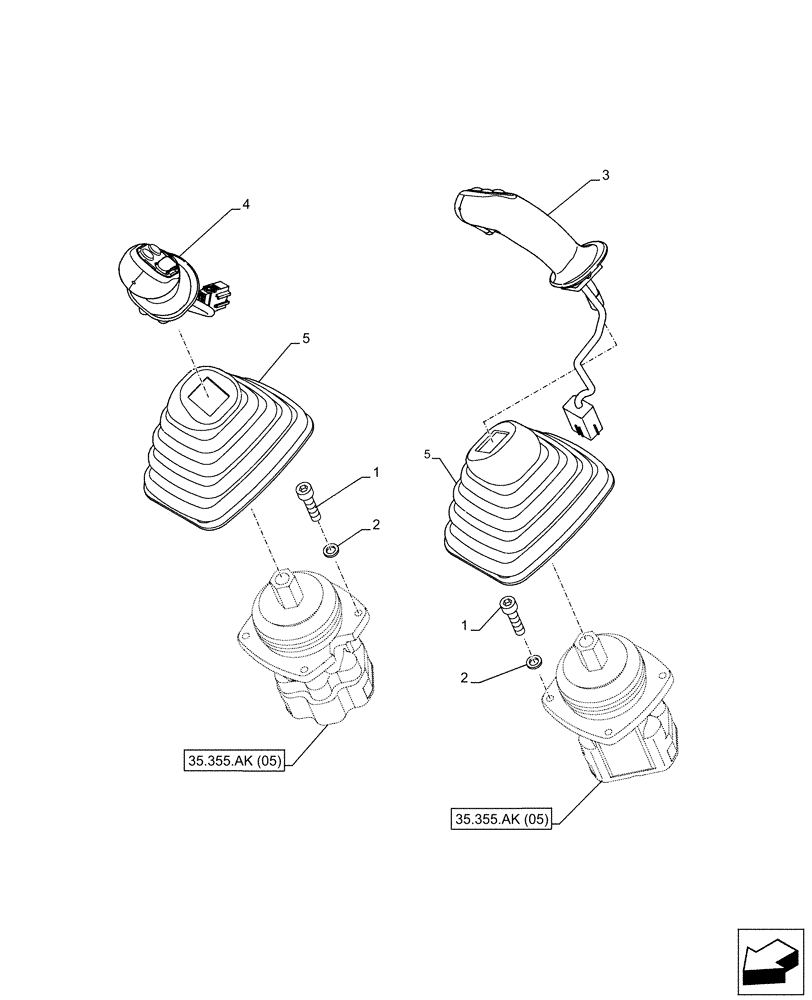

Схема запчастей Case CX300D LC - (35.355.AK[02]) - VAR - 461865 - 461869 - 461871 - JOYSTICK, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
2
3
4
5
35.355.ak (05)
5
1
1
2
35.355.ak (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

6шт.

2

892-11006

LOCK WASHER,M6

6шт.

3

KHJ29080

KNOB

Left

1шт.

Can be Equipped with VAR. 461863 See Page 35.355.AK [04]

1шт.

4

KHJ28550

JOYSTICK

Right

1шт.

5

KHN16760

BELLOWS

2шт.

Выбрано товаров: 6
