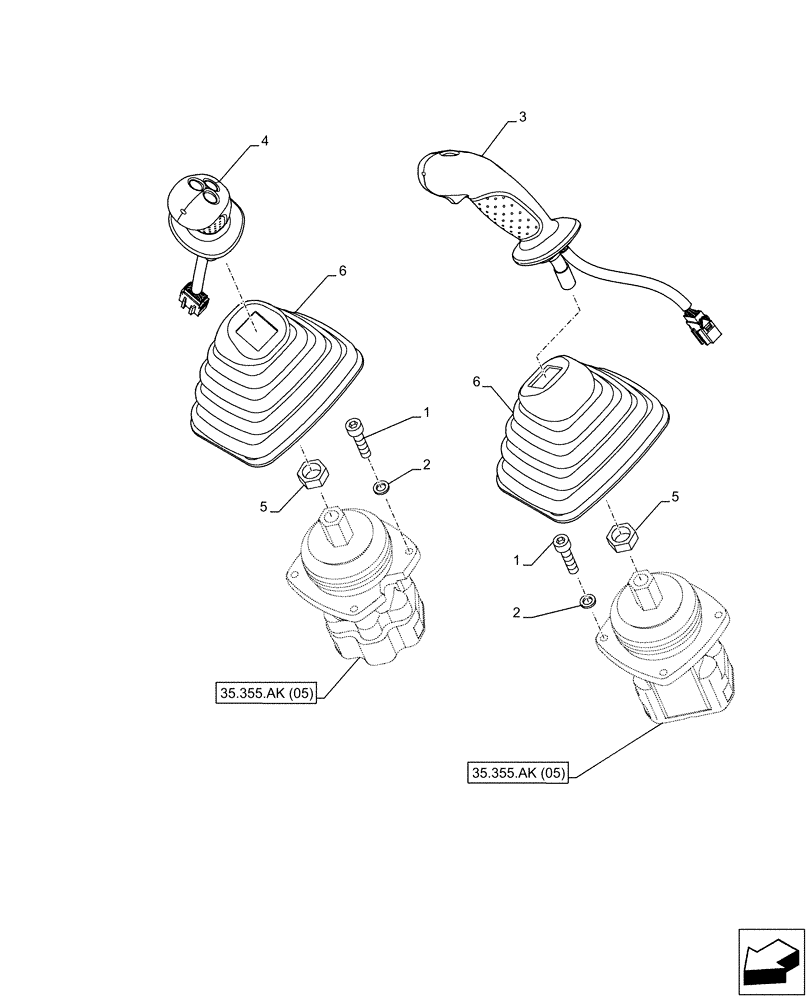

Запчасти Case CX300D LC (35.355.AK[01]) - STD + VAR - 461561, 461563 - JOYSTICK (35) - HYDRAULIC SYSTEMS

1

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

6шт.

2

892-11006

LOCK WASHER,M6

6шт.

3

KHJ24630

JOYSTICK

Left, Serial Range: -C0328

1шт.

3

KHJ24631

JOYSTICK

Left, Start Serial: D0328

1шт.

4

KHJ24640

JOYSTICK

Right, Serial Range: -C0328

1шт.

Can be Equipped with VAR. 461863 See Page 35.355.AK [03]

1шт.

4

KHJ24641

JOYSTICK

Right, Start Serial: D0328

1шт.

Can be Equipped with VAR. 461863 See Page 35.355.AK [03]

1шт.

5

151154A1

JAM NUT

2шт.

6

KHN16760

BELLOWS

2шт.
