Запчасти Case CX300D LC (35.355.AC[09]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

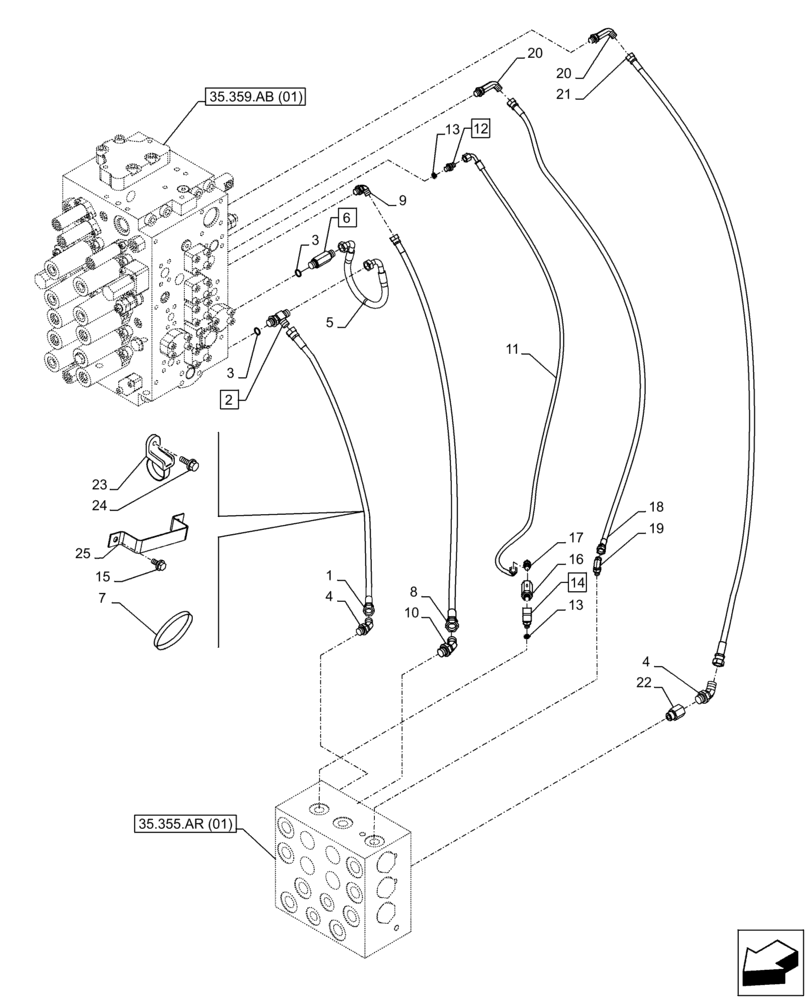

Схема запчастей Case CX300D LC - (35.355.AC[09]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
35.355.ar (01)
4
4
3
6
13
11
25
7
8
9
10
35.359.ab (01)
20
24
18
1
23
13
19
21
22
16
17
3
2
5
12
15
20
14

Артикул

Название

Примечание

Количество

1

KHJ2381

HOSE ASSY.

9mm ID x 1600mm

1шт.

2

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 3 (Qty 1)

1шт.

3

154475A1

O-RING

2шт.

4

KHJ28640

ELBOW

G3/8" x G3/8"

2шт.

5

KHJ32680

HOSE

9mm ID x 390mm

1шт.

6

KAJ2351

FITTING

ASSY, Incl 3 (Qty 1)

1шт.

7

150498A1

MOUNTING CLIP

1шт.

8

KHJ2058

HOSE

6mm ID x 1550mm

1шт.

9

KHJ28690

ELBOW

G3/8" x G1/4"

1шт.

10

KHJ28730

ELBOW

G3/8" x G1/4"

1шт.

11

KHJ2097

HOSE

6mm ID x 1750mm

1шт.

12

162366A1

ADAPTER

ASSY, Incl 13 (Qty 1)

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

14

KHJ0719

ELBOW

ASSY, Incl 13 (Qty 1)

1шт.

15

166350A1

BOLT

2шт.

16

KHJ10790

FILTER SCREEN

1шт.

17

KHJ28630

ELBOW

G1/4" x G1/4"

1шт.

18

KHJ29470

HOSE

9mm ID x 1850mm

1шт.

19

KHJ28710

ELBOW

G1/4"x G3/8"

1шт.

20

KHJ28820

ELBOW

G3/8" x G3/8"

2шт.

21

KHJ24360

HYDRAULIC HOSE

9mm ID x 1800mm

1шт.

22

KHJ13790

STUD

G3/8" x G3/8"

1шт.

23

KHR2581

CLAMP

M8

1шт.

24

KHJ1215

BOLT,Spcl

M8 x 25mm

2шт.

25

KHJ1906

CLAMP

1шт.

Выбрано товаров: 25
