/ / / / / / / / (35.355.AC[08]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE

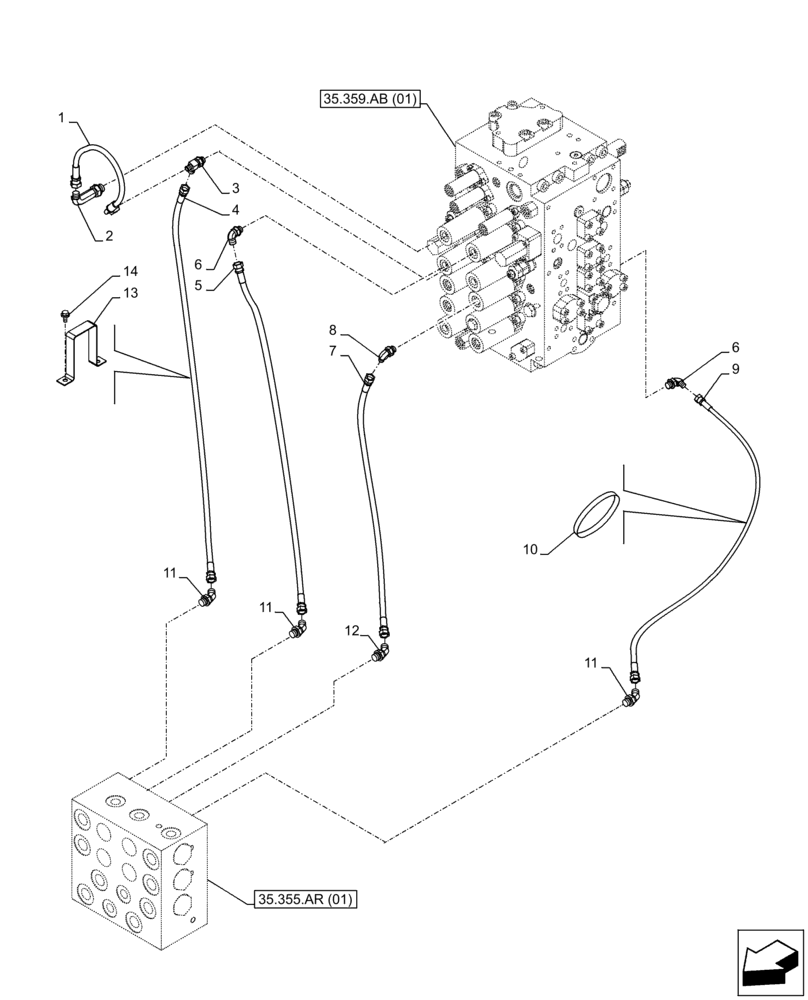

Запчасти Case CX300D LC (35.355.AC[08]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX300D LC - (35.355.AC[08]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5317381.png)
1
11
35.359.ab (01)
14
11
12
8
6
11
3
7
35.355.ar (01)
10
5
9
6
13
4
2
1
KHJ2342
HOSE
6mm ID x 380mm
1шт.
2
KHJ28880
ELBOW
1шт.
3
KHJ13900
TEE
G3/8 " x G1/4" x G3/8"
1шт.
4
KHJ2323
HOSE
9mm ID x 2200mm
1шт.
5
KHJ2474
HOSE
9mm ID x 2250mm
1шт.
6
KHJ28590
ELBOW
G3/8" x G3/8"
2шт.
7
KHJ2068
HOSE
6mm ID x 2250mm
1шт.
8
KHJ28690
ELBOW
G3/8" x G1/4"
1шт.
9
KHJ17190
HOSE
9mm ID x 1750mm
1шт.
10
150498A1
MOUNTING CLIP
5шт.
11
KHJ28640
ELBOW
G3/8" x G3/8"
3шт.
12
KHJ28730
ELBOW
G3/8" x G1/4"
1шт.
13
KHJ32670
CLAMP
2шт.
14
166350A1
BOLT
4шт.
