(35.355.AC[07]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE

Запчасти Case CX300D LC (35.355.AC[07]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

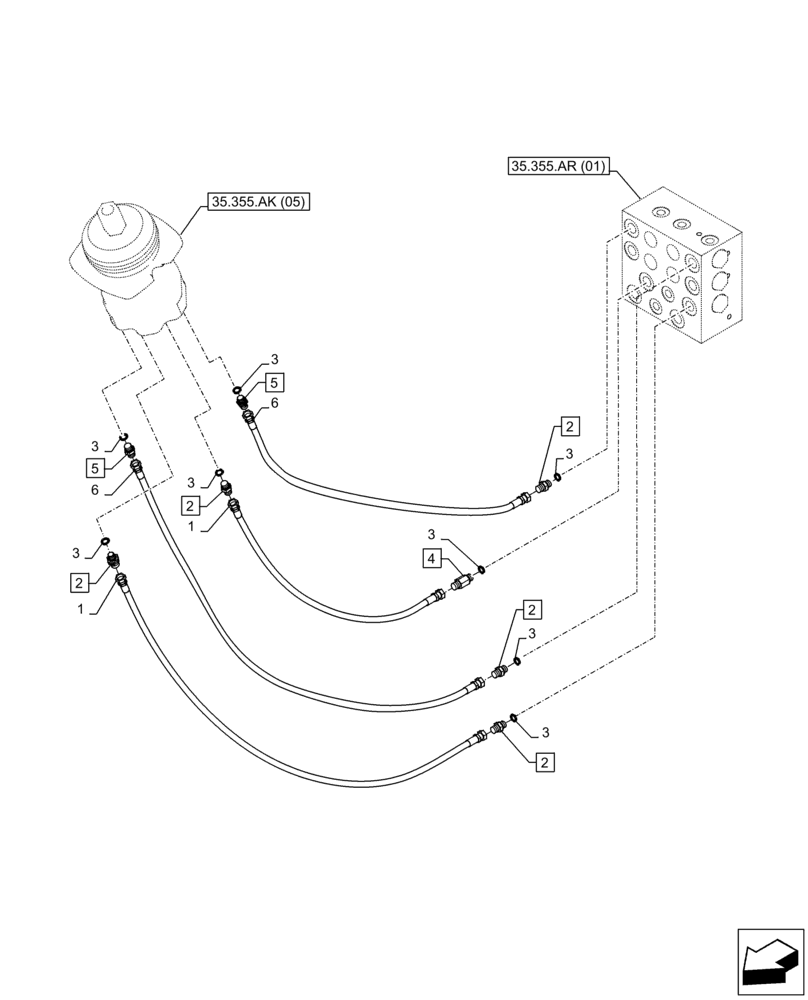

Схема запчастей Case CX300D LC - (35.355.AC[07]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
1
5
3
5
3
3
6
3
3
2
2
2
35.355.ar (01)
2
6
3
4
3
2
1
35.355.ak (05)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

2шт.

2

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 3 (Qty 5)

5шт.

3

154475A1

O-RING

8шт.

4

KAJ2351

FITTING

ASSY, Incl 3 (Qty 1)

1шт.

5

KHJ1402

ADAPTER

ASSY, Incl 3 (Qty 2)

2шт.

6

159217A1

HYDRAULIC HOSE

2шт.

Выбрано товаров: 6
