(35.355.AC[06]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE

Запчасти Case CX300D LC (35.355.AC[06]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

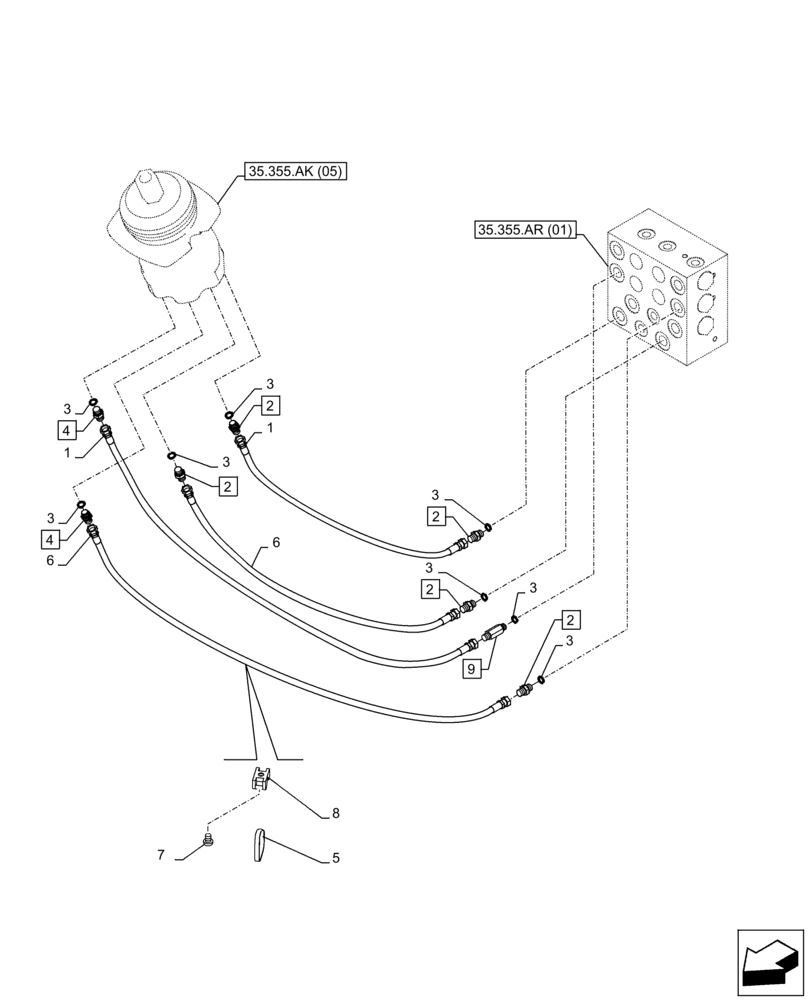

Схема запчастей Case CX300D LC - (35.355.AC[06]) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS
9
35.355.ar (01)
2
3
35.355.ak (05)
8
5
6
2
3
6
3
4
2
2
1
4
2
3
3
1
3
3
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159211A1

HYDRAULIC HOSE

2шт.

2

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 3 (Qty 5)

4шт.

3

154475A1

O-RING

8шт.

4

KHJ1402

ADAPTER

ASSY, Incl 3 (Qty 2)

2шт.

5

150498A1

MOUNTING CLIP

1шт.

6

KHJ22430

HYDRAULIC HOSE

2шт.

7

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

8

150860A1

COLLAR

1шт.

9

KAJ2351

FITTING

ASSY, Incl 3 (Qty 1)

1шт.
