(35.355.AC[05]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX300D LC (35.355.AC[05]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

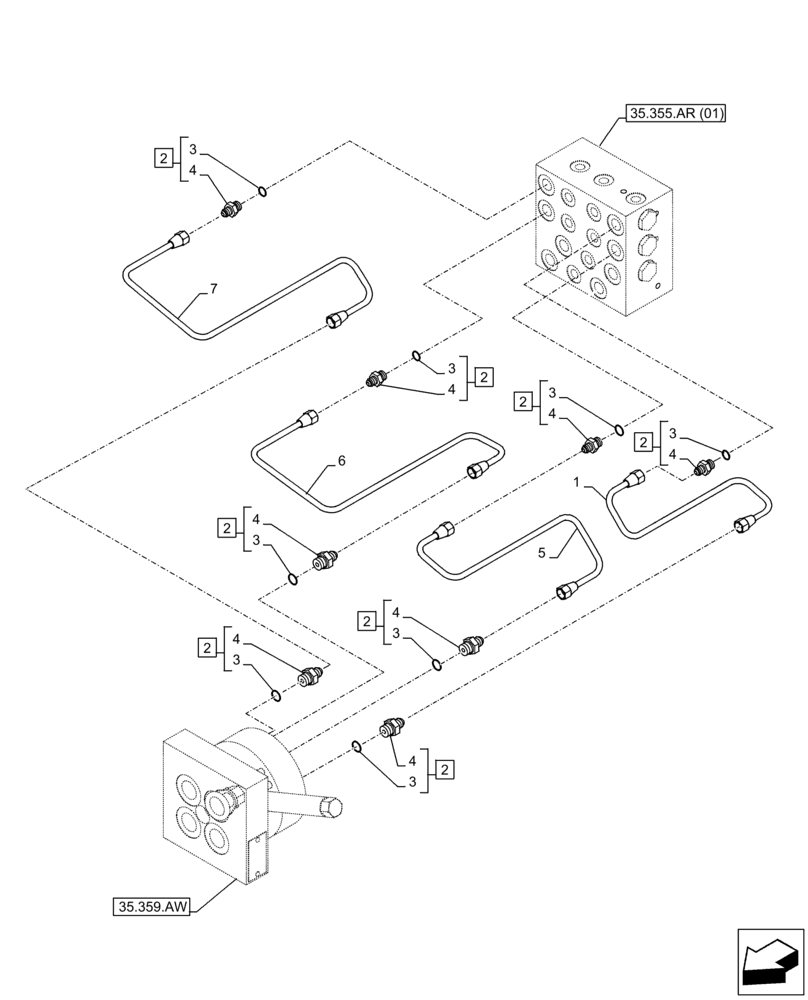

Схема запчастей Case CX300D LC - (35.355.AC[05]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
2
7
2
4
3
6
3
4
3
1
3
35.355.ar (01)
35.359.aw
3
4
2
3
2
4
3
2
2
5
2
2
4
4
4
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ32490

PIPE

1шт.

2

KHJ1821

NIPPLE, LUBE

ASSY, Incl 3, 4

8шт.

3

154475A1

O-RING

8шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

8шт.

5

KHJ23370

HYD TUBE

1шт.

6

KHJ31970

PIPE

1шт.

7

KHJ31960

PIPE

1шт.

Выбрано товаров: 7
