(35.355.AC[04]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX300D LC (35.355.AC[04]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

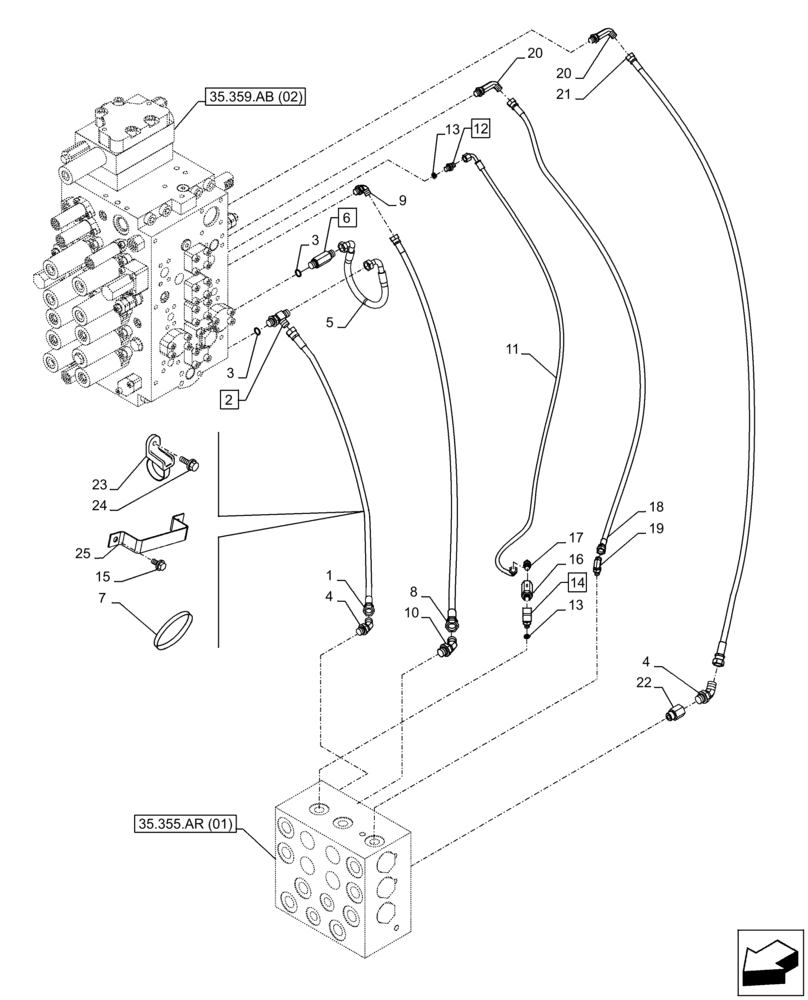

Схема запчастей Case CX300D LC - (35.355.AC[04]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
2
23
20
16
14
24
3
13
6
15
4
20
11
25
3
12
1
4
8
21
35.355.ar (01)
22
18
13
17
10
7
5
19
35.359.ab (02)
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2381

HOSE ASSY.

9mm ID x 1600m

1шт.

2

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 3

1шт.

3

154475A1

O-RING

2шт.

4

KHJ28640

ELBOW

G3/8" x G3/8"

2шт.

5

KHJ32680

HOSE

09mm ID x 390mm

1шт.

6

KAJ2351

FITTING

ASSY, Incl 3

1шт.

7

150498A1

MOUNTING CLIP

1шт.

8

KHJ2058

HOSE

6mm ID x 1550mm

1шт.

9

KHJ28690

ELBOW

G3/8" x G1/4"

1шт.

10

KHJ28730

ELBOW

G3/8" x G1/4"

1шт.

11

KHJ2097

HOSE

6mm ID x 1750mm

1шт.

12

162366A1

ADAPTER

ASSY, Incl 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

14

KHJ0719

ELBOW

ASSY, Incl 13

1шт.

15

166350A1

BOLT

M8 x 20mm

2шт.

16

KHJ10790

FILTER SCREEN

1шт.

17

KHJ28630

ELBOW

G1/4" x G1*/4"

1шт.

18

KHJ29470

HOSE

09mm ID x 1850mm

1шт.

19

KHJ28710

ELBOW

G1/4" x G3/8"

1шт.

20

KHJ28820

ELBOW

G3/8" x G3/8"

2шт.

21

KHJ24360

HYDRAULIC HOSE

9mm ID x 1800mm

1шт.

22

KHJ13790

STUD

1шт.

23

KHR2581

CLAMP

1шт.

24

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

25

KHJ1906

CLAMP

1шт.
