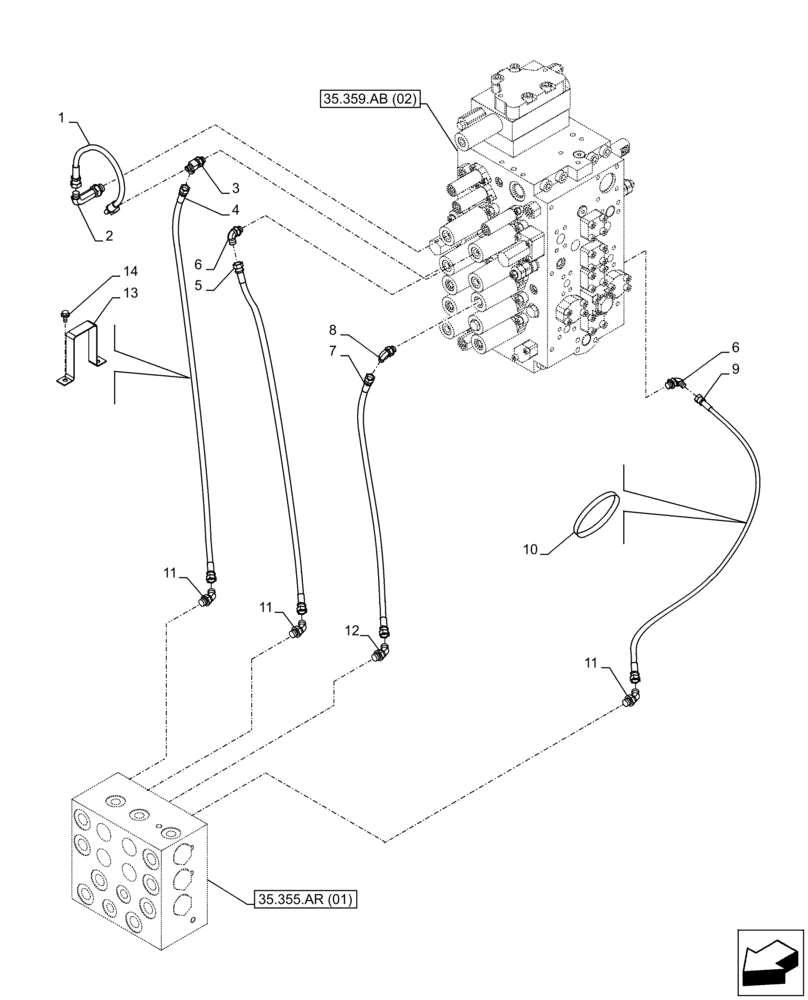

Запчасти Case CX300D LC (35.355.AC[03]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KHJ2342

HOSE

6mm ID x 380mm

1шт.

2

KHJ28880

ELBOW

G3/8" x G1/4"

1шт.

3

KHJ13900

TEE

G3/8" x G1/4" x G3/8"

1шт.

4

KHJ2323

HOSE

9mm ID x 2200mm

1шт.

5

KHJ2474

HOSE

9mm ID x 2250mm

1шт.

6

KHJ28590

ELBOW

G3/8" x G3/8"

2шт.

7

KHJ2068

HOSE

6mm ID x 2250mm

1шт.

8

KHJ28690

ELBOW

G3/8" x G1/4"

1шт.

9

KHJ17190

HOSE

9mm ID x 1750mm

1шт.

10

150498A1

MOUNTING CLIP

5шт.

11

KHJ28640

ELBOW

G3/8" x G3/8"

3шт.

12

KHJ28730

ELBOW

G3/8" x G1/4"

1шт.

13

KHJ32670

CLAMP

2шт.

14

166350A1

BOLT

M8 x 20mm

4шт.
