(35.355.AC[02]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX300D LC (35.355.AC[02]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

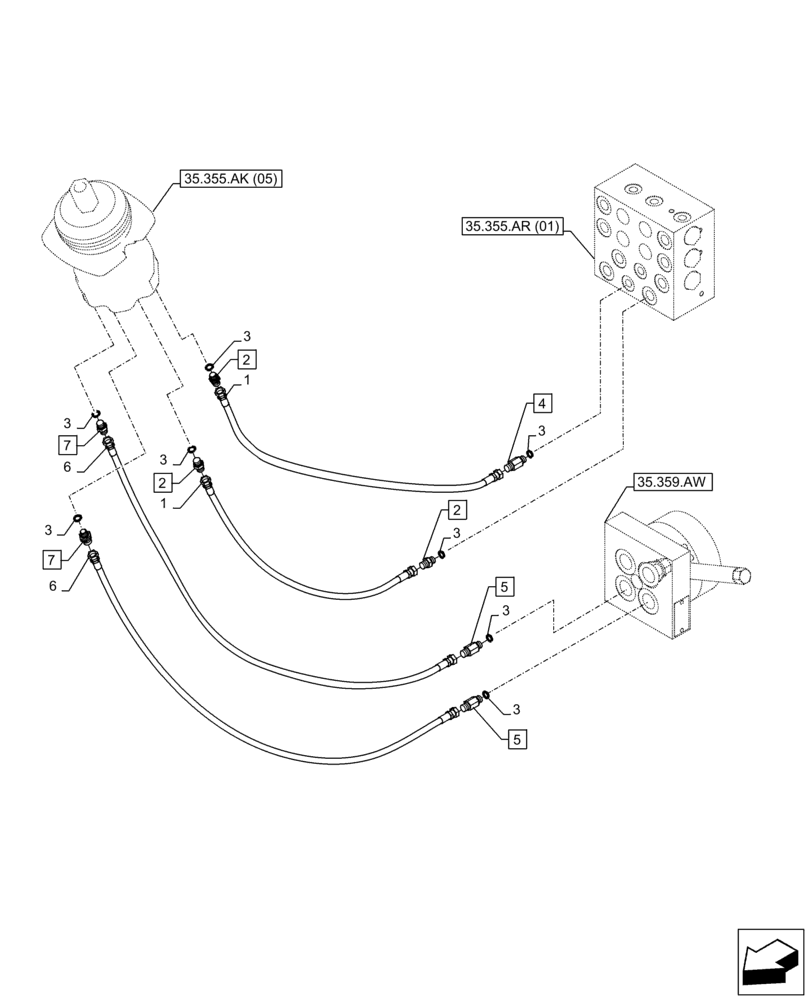

Схема запчастей Case CX300D LC - (35.355.AC[02]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
6
3
35.355.ak (05)
1
7
35.355.ar (01)
35.359.aw
3
4
1
2
5
5
6
3
2
3
3
3
3
3
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ4381

HYDRAULIC HOSE,9.50 mm ID x 1800.00 mm

2шт.

2

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 3 (Qty 3)

3шт.

3

154475A1

O-RING

8шт.

4

KAJ2351

FITTING

ASSY, Incl 3 (Qty 1)

1шт.

5

159226A1

ADAPTER

ASSY, Incl 3 (Qty 2)

2шт.

6

159217A1

HYDRAULIC HOSE

9mm ID x 1850mm

2шт.

7

KHJ1402

ADAPTER

ASSY, Incl 3 (Qty 2)

2шт.
