(35.355.AC[01]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX300D LC (35.355.AC[01]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

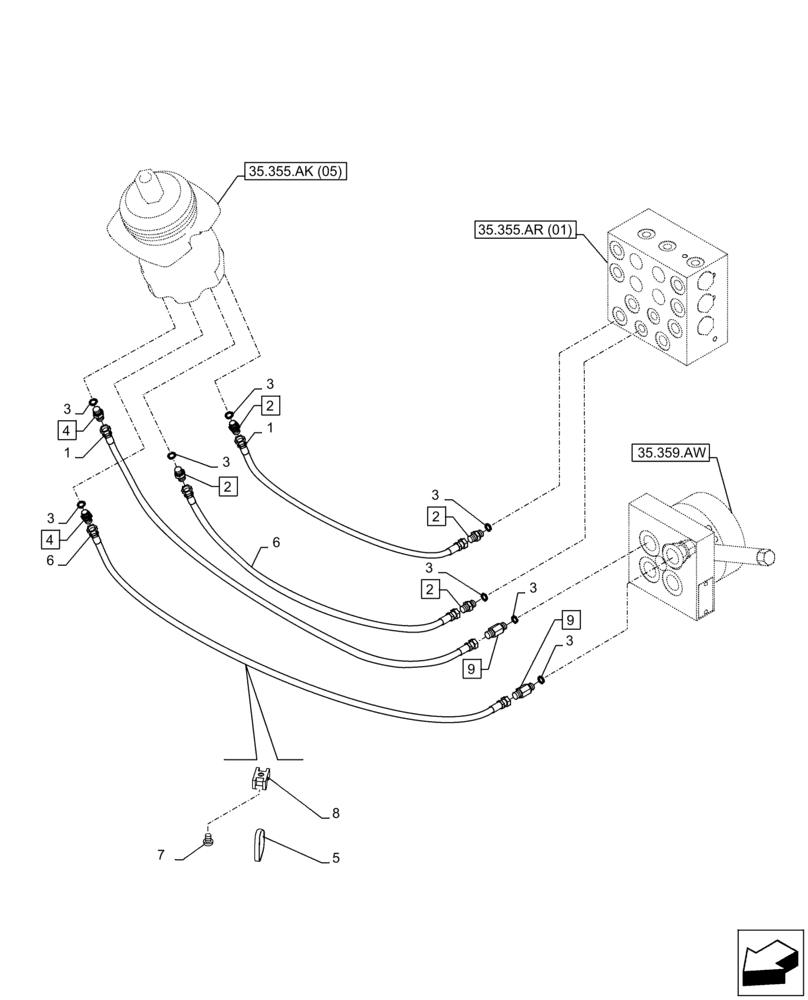

Схема запчастей Case CX300D LC - (35.355.AC[01]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
9
6
3
8
3
35.355.ak (05)
5
3
3
1
9
3
2
3
4
2
6
35.355.ar (01)
1
4
35.359.aw
3
7
2
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159211A1

HYDRAULIC HOSE

2000mm

2шт.

2

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 3 (Qty 4)

4шт.

3

154475A1

O-RING

8шт.

4

155211A1

O-RING

ASSY, Incl 3 (Qty 2)

2шт.

5

150498A1

MOUNTING CLIP

1шт.

6

KHJ22430

HYDRAULIC HOSE

9mm ID x 2050mm

2шт.

7

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

8

150860A1

COLLAR

1шт.

9

159226A1

ADAPTER

ASSY, Incl 3 (Qty 2)

2шт.

Выбрано товаров: 9
