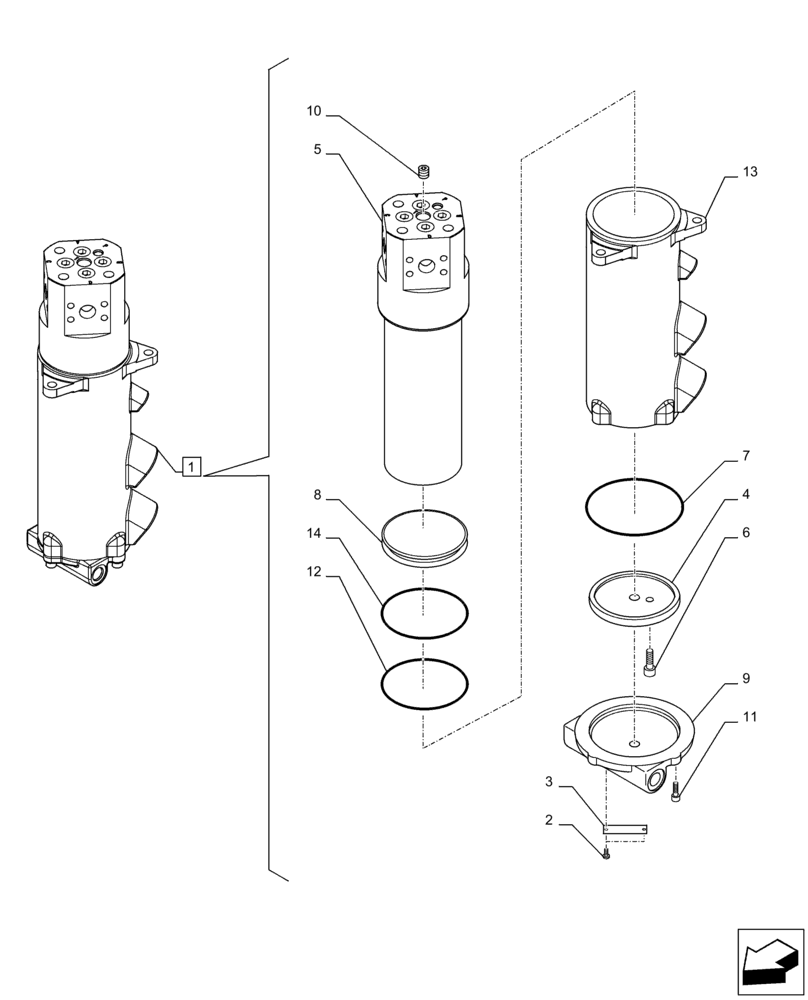

Запчасти Case CX300D LC (35.354.AA[02]) - HYDRAULIC SWIVEL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KSA1305

HYDRAULIC SWIVEL

ASSY, Incl 2 - 14

1шт.

2

86542114

DRIVE SCREW,Rd Hd, #2 x 3/16", U Type

2шт.

3

152593A1

TYPE PLATE

1шт.

4

KTA1096

PLATE

1шт.

5

KSA1303

SHAFT

1шт.

6

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

7

154761A1

O-RING,119.4mm ID x 3.1mm Width

1шт.

8

KTA1092

SHAFT SEAL

1шт.

9

KTA1095

COVER

1шт.

10

150829A1

PLUG

4шт.

11

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

12

KTA1093

SEALING RING

7шт.

13

KSA1304

ROTOR

1шт.

14

KHA10120

O-RING

1шт.
