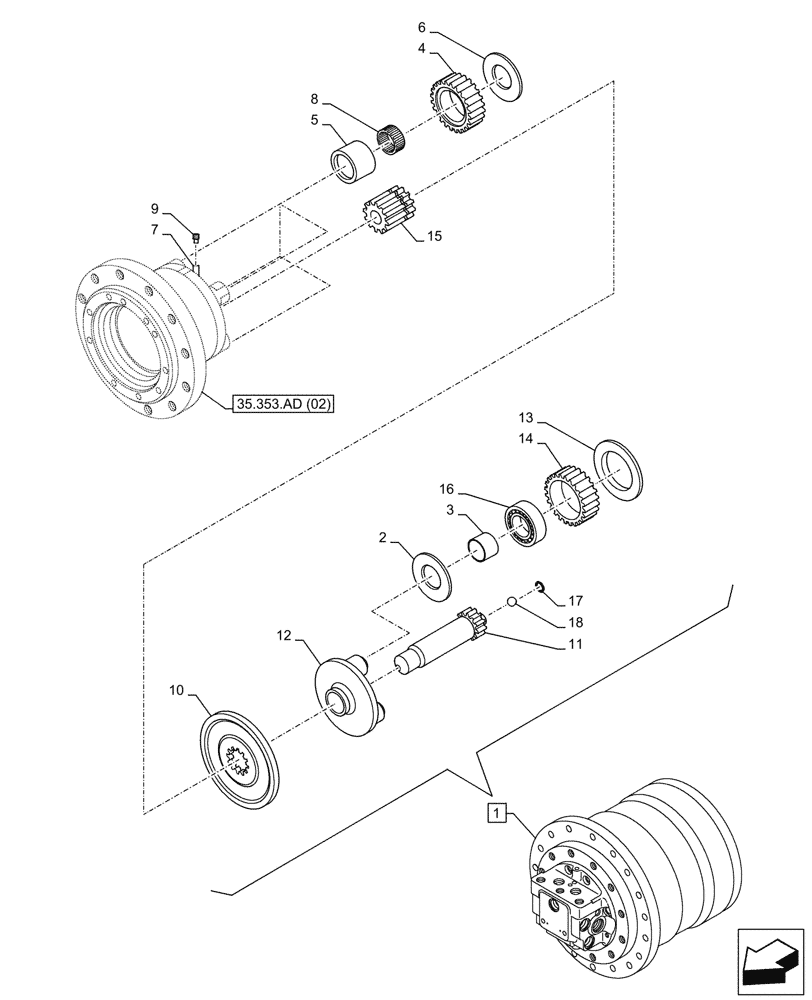

Запчасти Case CX300D LC (35.353.AG[02]) - MOTO-REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KBA14840

HYDRAULIC MOTOR

ASSY, Incl 2 - 18

1шт.

See Also figure 35.353.AD(01), 35.353.AD(02), 35.353.AD(03), 35.353.AB, 35.353.AG(01)

1шт.

2

LA016510

WASHER

3шт.

3

LB017180

RACE

3шт.

4

LC003900

GEAR

4шт.

5

LN003600

CARRIER

4шт.

6

LA016490

WASHER

8шт.

7

LA016500

PIN

4шт.

8

LB017150

NEEDLE BEARING

4шт.

9

LK00298

PLUG

4шт.

10

LN003590

CARRIER

1шт.

11

LC003920

SUN GEAR

1шт.

12

LN003610

CARRIER

1шт.

13

LR023330

PLATE

1шт.

14

LC003930

PLANETARY GEAR

3шт.

15

LC003940

SUN GEAR

1шт.

16

LB017170

ROLLER

3шт.

17

LA016520

WASHER

1шт.

18

LB017190

BALL

1шт.
