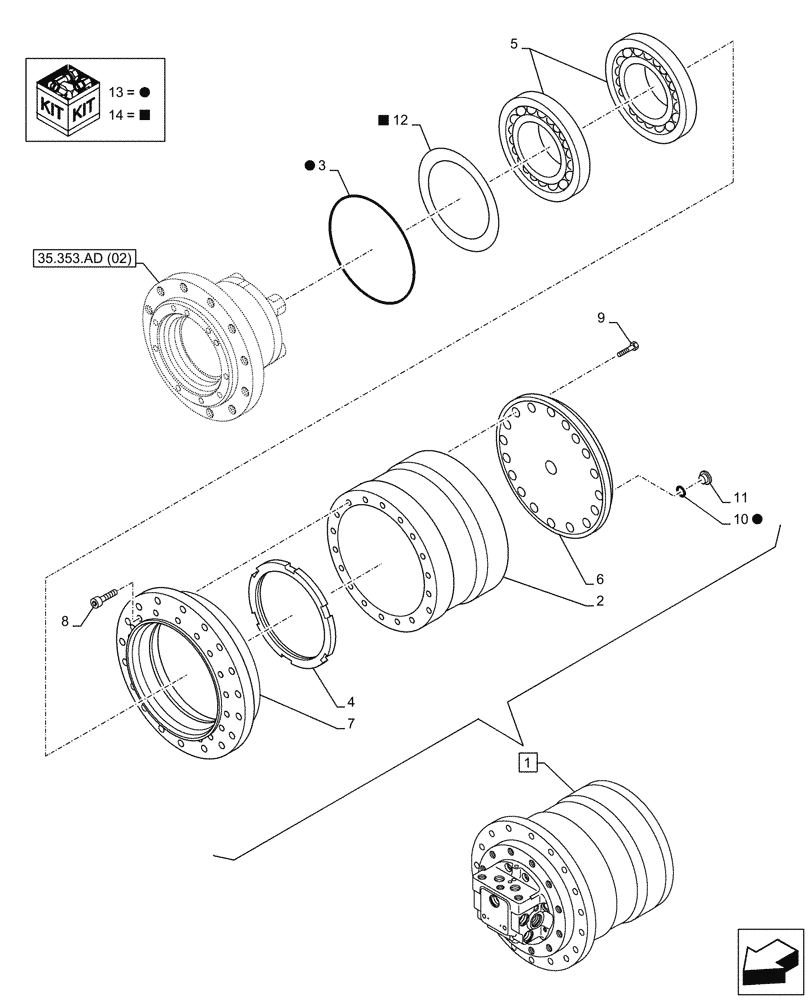

Запчасти Case CX300D LC (35.353.AG[01]) - MOTO-REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KBA14840

HYDRAULIC MOTOR

ASSY, Incl 2 -14

1шт.

See also figure 35.353.AB, 35.353.AD(01), 35.353.AD(02), 35.353.AD(03), 35.353.AG(02)

1шт.

2

LC003910

RING GEAR

1шт.

3

LE024780

SEAL

1шт.

4

LA016360

LOCK WASHER

2шт.

5

LB017160

BALL BEARING

2шт.

6

LW007300

COVER

1шт.

7

LT002880

HOUSING

1шт.

8

108R018Y110R

BOLT

25шт.

9

626-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

18шт.

10

154503A1

O-RING

2шт.

11

LK00383

PLUG

2шт.

12

LH007490

SHIM

1шт.

13

LZ013180

KIT

1шт.

See also figure 35.353.AD(02), 35.353.AD(03)

1шт.

14

LZ013190

KIT

1шт.

Kit Include Shim in Qty 23

1шт.
