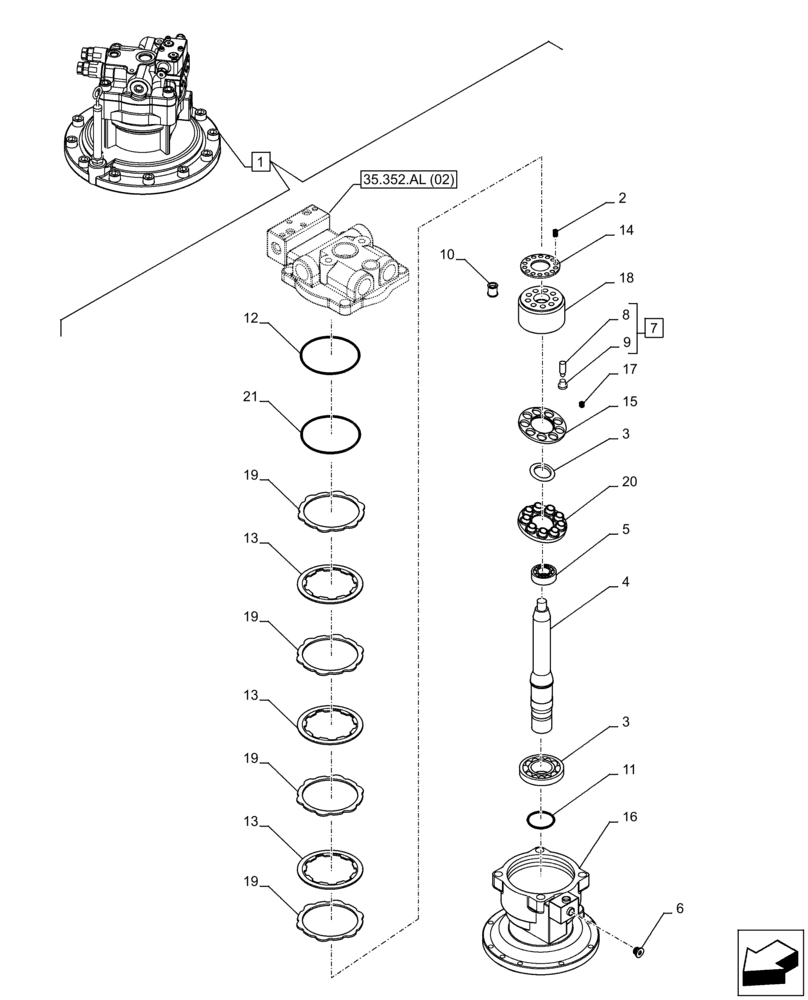

Запчасти Case CX300D LC (35.352.AL[03]) - SWING REDUCTION, GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KBC10200

HYDRAULIC MOTOR

ASSY, Incl 2 - 21

1шт.

1

KBC10200R

REMAN-HYD MOTOR

1шт.

1

KBC10200C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

156099A1

SPRING

16шт.

3

LB011860

BEARING, ROLLER, CYL,45mm ID x 100mm OD x 25mm W

1шт.

4

LB012340

DRIVE SHAFT

1шт.

5

LB011870

BEARING, ROLLER, CYL,25mm ID x 62mm OD x 24mm W

1шт.

6

LK005680

PLUG

1шт.

7

LJ019620

PISTON

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON, Incl in 7

9шт.

9

NSS

NOT SOLD SEPARAT

SHOE,Incl in 7

9шт.

10

LJ00748

PISTON

1шт.

11

LE016100

OIL SEAL

1шт.

12

LE015110

O-RING

1шт.

13

TR00128

PLATE

3шт.

14

TR00129

PLATE

1шт.

15

TR00130

PLATE

1шт.

16

LW006660

HOUSING

1шт.

17

TG00069

SPRING

1шт.

18

TJ00195

BARREL

1шт.

19

TR00127

ADJUSTING PLATE

4шт.

20

LR015160

PLATE

1шт.

21

LE027930

O-RING

1шт.
