(35.300.BE) - HYDRAULIC OIL RESERVOIR, BREATHER

Запчасти Case CX300D LC (35.300.BE) - HYDRAULIC OIL RESERVOIR, BREATHER (35) - HYDRAULIC SYSTEMS

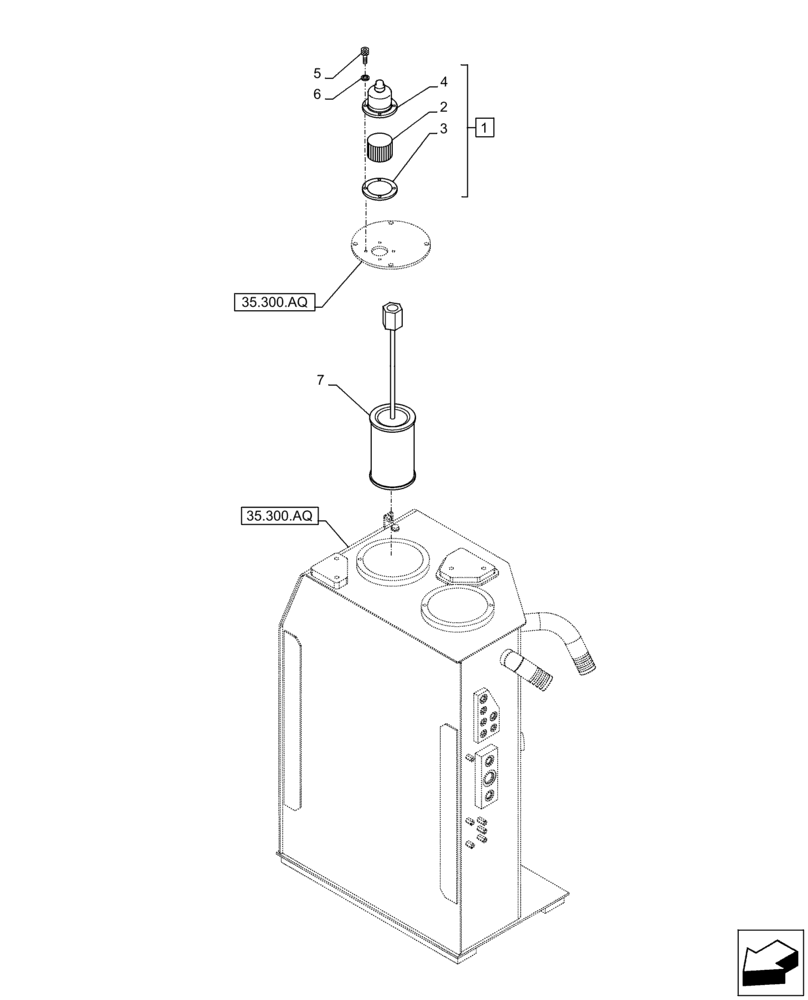

Схема запчастей Case CX300D LC - (35.300.BE) - HYDRAULIC OIL RESERVOIR, BREATHER (35) - HYDRAULIC SYSTEMS
35.300.aq
5
7
2
4
35.300.aq
3
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1491

BREATHER

ASSY, Incl 2 - 4

1шт.

2

159702A1

HYDRAULIC OIL FILTER

Reservoir Breather

1шт.

3

159703A1

GASKET

1шт.

4

KHJ1492

CAP

1шт.

5

862-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

6

892-11006

LOCK WASHER,M6

4шт.

7

KRJ34901

FILTER STRAINER

Inlet

1шт.
